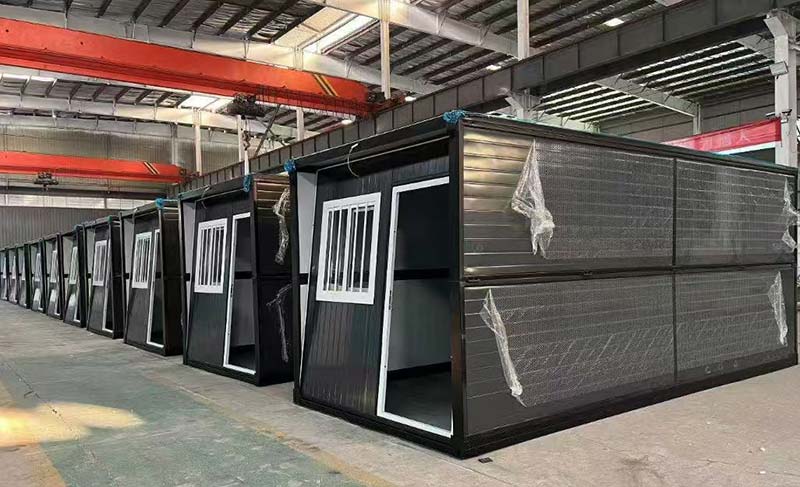

Prefab Mobile Foldable Container House

Product Details

This prefabricated mobile foldable container house is an innovative space solution that integrates convenient transportation, rapid deployment and comfortable living. The main body of the foldable container house is made of high-strength steel structural frame and composite sandwich panels, and the entire container can be prefabricated in the factory. Its core advantage lies in its unique folding design. After folding, the thickness is only 15%-20% of the unfolded state, which greatly saves transportation and warehousing costs. A standard truck can load multiple units.

Folding Case Technical Specifications
Types	Specifications	Material Name	Model	Thickness (mm)	Unit	Quantity
Basic Characteristics	External Dimensions (mm)	5800*2480*2520
	Internal Dimensions (mm)	5670*2350*2360
	Folded State	5800*2480*350
	Gross Weight (kg)	950.00
Frame Structure	Top Structure	Q235 galvanized square tube	40*40*2.32m	1.20	Root	4
		Q235 galvanized square tube	20*40*1.1m	1.20	Root	5
		Q235 galvanized square tube	20*20	1.20	Root	2
		Galvanized square tube	50*70*5.8m	1.20	Root	2
			5.64m	1.20	Root	2
		Corrugated steel sheet	2.32m	1.20	Root	2
		Rock wool		0.40	Root	7
		Ceiling panel	11.6m*1.24m	50.00	Block	2
		L-shaped steel sheet	20 ceiling panels		Roll	30
	5.8-meter noodles		1.15m	2.00	Block	4
		Galvanized profiled material	1.165m	2.00	Block	4
		Galvanized profiled material	40*65	1.20	Block	8
		Galvanized hinge	40*65*1080	1.20	Root	8
		Wall panel 50-950	High strength		Piece	34
		D-type sealing strip	1080MM*2.845M	0.30	Block	8
		Galvanized profiled material	5.8m		Root	24
	2.48 meters of noodles		2.43m	1.20	Piece	4
		Galvanized profiled material	2.31m	1.20	Block	4
			2.45	1.20	Root	1
		Wall panel	860	1.20	Piece	1
		Window	50-950，double 0.25, 10KG EPS	0.30	Block	9.66
		Door	935*935	PVC sliding windows with double glazed tempered glass	Root	2
		Sealing strip	860*1980	High-quality security doors	Root	1
		Custom galvanized square tube		Sealed and dust proof	Piece	21.32
	Bottom structure		60*80*5.8m	1.20	Block	2
		Hinges	65*40 molded parts	1.20	Root	2
		Q235B galvanized square tube	High strength		Piece	4
		Flooring	40*40*2.32m	1.20	Block	14
		Floor	1125*2315	15.00	Piece	5
Top of Enclosure	Overall frame coating	Electrostatic powder coating / Straight white powder coating / Matte black / Matte gray
Electrical System	Electrical wiring was installed strictly in accordance with moisture-proof specifications, and all electrical products met CE certification. Circuit connections were made according to electrical engineering standards. Indoor wiring included: 2.5² standard soft copper wire for incoming power, one 20A circuit breaker, one three-hole air conditioner socket, 2.5² wire for the socket incoming power, one five-hole single-pole socket, one five-hole socket, and one LED light.
Security Door	High-quality security door (warm white) Dimensions: 860mm*1980mm
Window	925*930 double-glazed sliding window (PVC), 4mm thick glass (warm white)
Roof Load Capacity	1.0KN/m²
Aisle Load Capacity	4.2KN/m²
Wall Side Pressure	0.5KN/m²
Fire Resistance Rating	A
Seismic Resistance Rating	8
Wind Resistance Rating	10
Service Life	20 years

After the prefabricated mobile foldable container house arrives at the site, there is no need for large-scale hoisting equipment. 2-3 people can complete the deployment and placement within a few minutes through simple operations. The box comes with adjustable legs at the bottom to adapt to uneven terrain. After the container house is widened, the internal net height can reach more than 2.5 meters. It provides flexible functional partitions and can be quickly configured into construction site dormitories, field camps, emergency isolation rooms, country B&Bs or commercial kiosks.

The box of the folding container house is waterproof, fireproof, and windproof (resistance level 8). The sandwich layer has its own thermal insulation, and the circuit and drainage interface are reserved, so it can be plugged in and used. The service life can reach more than 15 years, and it can be disassembled, assembled, folded and transported repeatedly, truly realizing “stationary use and recycling”.

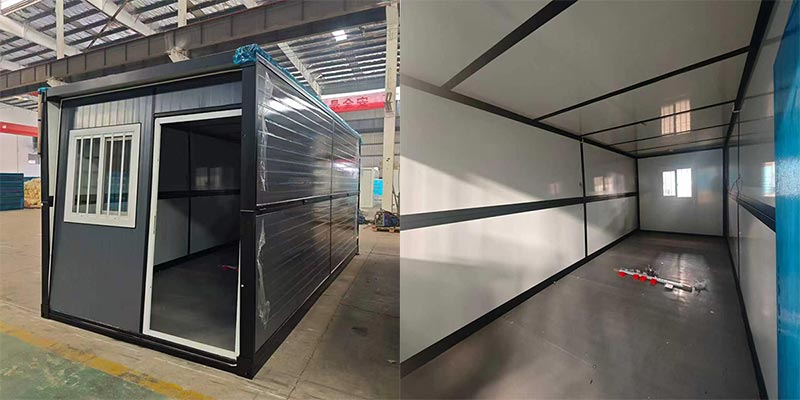

Mobile foldable container house interior decoration display

Display of different types of foldable container house

Production Workshop Display

The company has a modern production base of over 8,000 square meters, equipped with a steel structure welding workshop, two Italian‑imported sandwich panel production lines, three complete house production lines and an intelligent assembly system. The annual steel structure capacity reaches 150,000 tons, with a daily output of 3,000 square meters of high‑end sandwich panels and 200 sets of modular houses.

Product Packaging & Shipping

Our packing and shipping services offer customized, robust transportation solutions for every product category, ensuring your goods arrive safely worldwide. Steel structural components are packed with sturdy steel frames, forming stable transport units that effectively withstand the bumps and pressure of long-distance sea and land transport. Sandwich panels and container houses are fully wrapped with high-quality protective films, providing moisture, dust, and scratch protection while fully preserving the coating and appearance of the panels. We have deep expertise in export logistics; from packing methods to container loading, every step is professionally optimized to provide you with a worry-free and reliable delivery experience.

Why Choose Us?

• Compliance guaranteed: Complete international certifications, compatible with national standards, reducing application and acceptance risks.
• Cost controllable: Chinese supply and prefabricated construction result in overall cost savings of 15%-25%.
• Schedule guaranteed: BIM collaboration and factory prefabrication enable rapid production and a competitive market advantage.
• Reliable quality: Export-grade processes and rigorous testing ensure both structural safety and durability meet standards.
