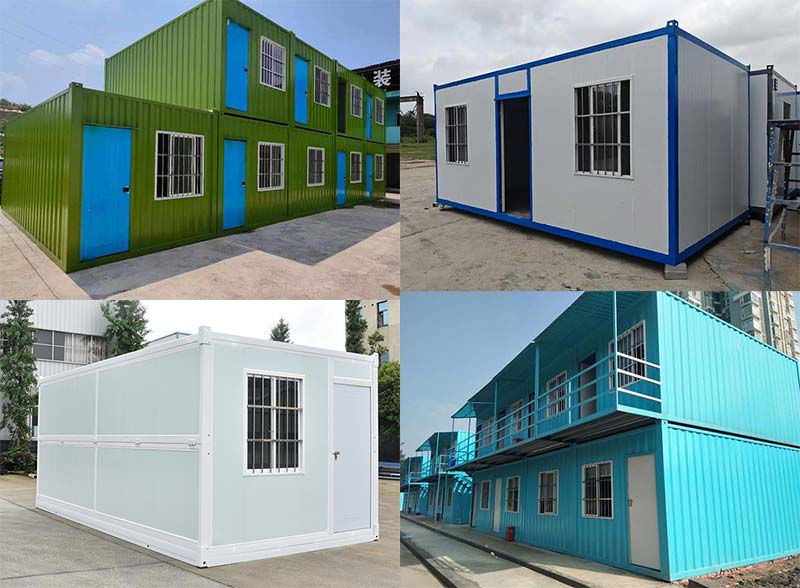

Temporary Accommodation Shelter Container Homes

Product Details

RUIISTEEL container houses are designed for rapid deployment in scenarios such as natural disaster emergencies, war zone shelters, pandemic quarantines, construction site dormitories, wilderness camps, and schools/clinics in remote areas. The container homes utilize an all-steel frame and sandwich panel enclosure system, prefabricated in the factory and modularly assembled on-site, completing the entire process from transportation to occupancy within hours. A single container can be used independently or combined into multi-story building complexes.

Parameter	Specification
External Dimensions	Length 6058mm × Width 2438mm × Height 2591mm (Standard 20-ft container size)
Internal Clear Height	Approx. 2400mm
Floor Area per Unit	Approx. 14.8 m²
Structural Steel	Q235B / Q355B galvanized square tube and cold-formed steel, wall thickness 2.5mm–3.0mm
Wall / Roof Panels	50mm / 75mm thick rock wool, fiberglass or polyurethane sandwich panel (Fire rating A / B1)
Flooring	18mm cement fiber board + PVC floor covering (optional anti-slip steel plate)
Doors & Windows	Security door + plastic‑steel / aluminum sliding window (with insect screen)
Pre‑installed Electrical	LED lighting, switches, sockets, reserved holes for AC / exhaust fan
Optional Equipment	Independent bathroom, electric water heater, small kitchen, bunk bed, storage cabinet, solar power system
Stacking Capacity	Up to 3 layers (with corner locking)
Design Service Life	15–20 years
Wind Resistance	Grade 12 (wind speed 32.6 m/s)
Seismic Resistance	Intensity 8
Thermal Performance	Heat transfer coefficient K ≤ 0.5 W/(m²·K) (with 75mm rock wool panel)
Fire Rating	Non‑combustible Class A (rock wool) / Flame‑retardant Class B1 (polyurethane)

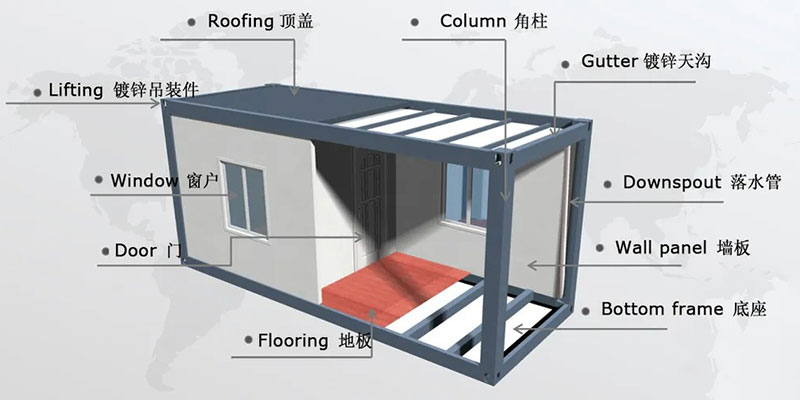

Quick assembled container house

All materials for this type modular container house are in bulk, after delivery to the construction site, install according to the drawings. Assemble the materials in corresponding positions together like building blocks.

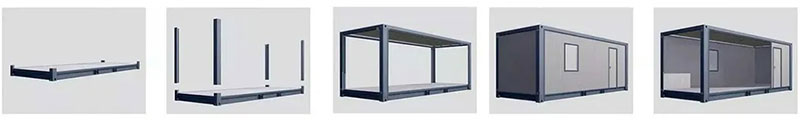

Flat packed container house

The roof and floor systems for this type modular container house have been processed at the factory, integrated roof and floor simplifies assembly steps.

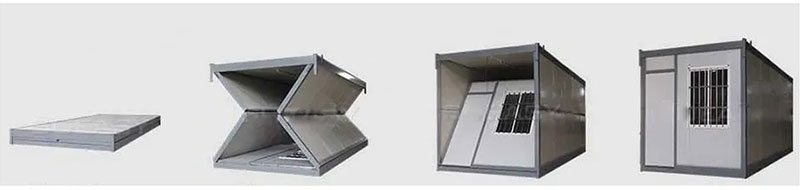

Foldable container house

This type modular container house highly integrated, simple and fast installation, and is portable.Only need to hang the roof and erect the two short sides of the wall and fix it,and then installation work is finished.

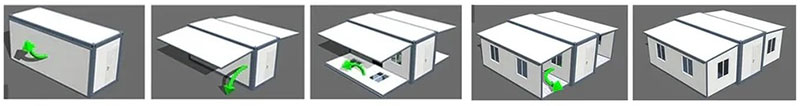

Expandable container house

It’s with special emphasis on the folding design. The extension design allows the house to have enough space. Simply unfold the sides manually to complete the installation, you can have a comfortable and smart dream house.

Advantages of Container Homes

1. Rapid Deployment, Ready to Use Immediately

90% of the production process is completed in the factory, including structural welding, insulation filling, door and window installation, and pre-installation of water and electricity pipelines. On-site installation only requires hoisting and connection of water and electricity for immediate occupancy. Single container installation time ≤ 15 minutes; 100 container houses can form a habitable community within 2–3 days.

2. High Safety, Adaptable to Harsh Environments

• The all-steel frame structure, optimized through finite element analysis, can withstand a category 12 typhoon and an earthquake of intensity 8.
• The exterior walls and roof are constructed with flame-retardant insulation materials, meeting international fire safety standards (ASTM E84, GB 8624).
• The bottom is treated with anti-corrosion, moisture-proof, insect-proof, and salt spray resistant (suitable for coastal or rainy season areas).

3. Flexible Combination and High Scalability

• A single container can be used as a dormitory, office, clinic, or communications room.
• Through connectors, they can be arranged side-by-side, interconnected, or stacked (2-3 layers) to form dormitories, temporary hospitals, schools, or command centers.
• External staircases, awnings, and corridors can be added to enhance usability.

4. Economical Transportation, Global Reachability

Standard 20-foot containers can be directly loaded into ocean shipping containers (the container itself is a container), or loaded and unloaded as a whole container. A 20GP container can hold 2 sets of collapsible container houses (folded height only 0.5m). A 40-foot high cube container can hold 6-8 sets. Whether by road, rail, or air, it is efficient and low-cost.

5. Recyclable and Relocatable, Low-Carbon and Environmentally Friendly

The overall structure of the house is disassembled and can be reassembled more than 5 times, with a relocation loss rate of less than 5%. The material recyclability rate is ≥ 80%, reducing carbon emissions by approximately 70% compared to traditional temporary concrete buildings.

6. Human-Centered Design

• The interior has no dead corners, wall-mounted mounting points allow for the installation of beds, tables, and storage shelves.
• Windows are equipped with mosquito screens and blackout roller blinds.
• An optional integrated wet and dry separation bathroom module is available.
• Rainwater collection tanks and solar panels can be installed on the roof for off-grid operation.

Container Homes Application Scenarios

• Natural Disaster Emergency: Emergency shelters and temporary resettlement sites after earthquakes, floods, and hurricanes;
• Humanitarian Aid: Refugee camps, temporary shelters for the homeless;
• Construction Engineering: Construction site dormitories, canteens, offices, tool depots;
• Mining/Energy Field Camps: Modular living areas in oil and gas fields, mines, and wind farms;
• Medical and Health: Epidemic prevention isolation rooms, expanded cabins of makeshift hospitals;
• Military Operations: Rapidly constructed barracks and command posts;
• Temporary Commercial/Community: Convenience stores and kindergartens in remote areas.

We earn the long-term trust of global clients through unparalleled efficiency and relentless pursuit of quality excellence.

Production Workshop Display

The company has a modern production base of over 8,000 square meters, equipped with a steel structure welding workshop, two Italian‑imported sandwich panel production lines, three complete house production lines and an intelligent assembly system. The annual steel structure capacity reaches 150,000 tons, with a daily output of 3,000 square meters of high‑end sandwich panels and 200 sets of modular houses.

Product Packaging & Shipping

Our packing and shipping services offer customized, robust transportation solutions for every product category, ensuring your goods arrive safely worldwide. Steel structural components are packed with sturdy steel frames, forming stable transport units that effectively withstand the bumps and pressure of long-distance sea and land transport. Sandwich panels and container houses are fully wrapped with high-quality protective films, providing moisture, dust, and scratch protection while fully preserving the coating and appearance of the panels. We have deep expertise in export logistics; from packing methods to container loading, every step is professionally optimized to provide you with a worry-free and reliable delivery experience.

Why Choose Us?

• Compliance guaranteed: Complete international certifications, compatible with national standards, reducing application and acceptance risks.
• Cost controllable: Chinese supply and prefabricated construction result in overall cost savings of 15%-25%.
• Schedule guaranteed: BIM collaboration and factory prefabrication enable rapid production and a competitive market advantage.
• Reliable quality: Export-grade processes and rigorous testing ensure both structural safety and durability meet standards.
