Cold Room for Frozen Meat, Seafood, Vegetable and Fruits
| Place of Origin: | Zhengzhou,China |
|---|---|
| Brand Name: | RUIISTEEL |
| Materials: | Insulation Panels |
| Wall/Roof System: | PU/EPS Sandwich Panel |
| Accessory: | Refrigeration Equipment, Door |
| Certification: | CE, ISO, GB, AISC, SGS, BV |
| Service Life: | Over 30 Years |
| Delivery Time: | 30 Days After Receiving the Deposit |
| Payment: | T/T, L/C |
Product Details
RUIISTEEL’s cold room compartments offer precise temperature control and five-sided insulation, catering to the different physiological characteristics of frozen meat, seafood, and fruits and vegetables. This ensures comprehensive coverage from -25°C extreme freezing to 0°C preservation, meeting export-grade food safety standards.
Customized cold room/ storage
| Dimension | Length (m) *Width (m)*Height (m) |
| Panel | Polyurethane insulation panel,43kg/m3, fire retardant B2,PIR |
| Foaming material | BASF |
| Panel thickness | 50mm,75mm,100mm,120mm,150mm,200mm |
| Steel cover | stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
| Panel connection | cam lock type, use hexagonal key to assemble and disassemble |
| Type of door | hinge door, convex door,manual sliding door,electrical sliding door |
| Temp.of room | -60~+20 degree ºC, optional |
| Purpose of cold room | fruit,vegetable,flower etc,frozen food,fish,meat,chicken etc. |
| Refrigeration unit | Bitzer, Copeland, Maneurop, Fusheng etc. |
| Refrigeration type | air cooled / water cooled/evaporative cooled |
| Fittings | all necessary fittings are included, optional |
| Place to assemble | indoor/out door(concrete construction building/steel construction building) |
| Voltage | 220V/50HZ, 220V/60HZ, 380V/50HZ ,440V/60HZoptional |

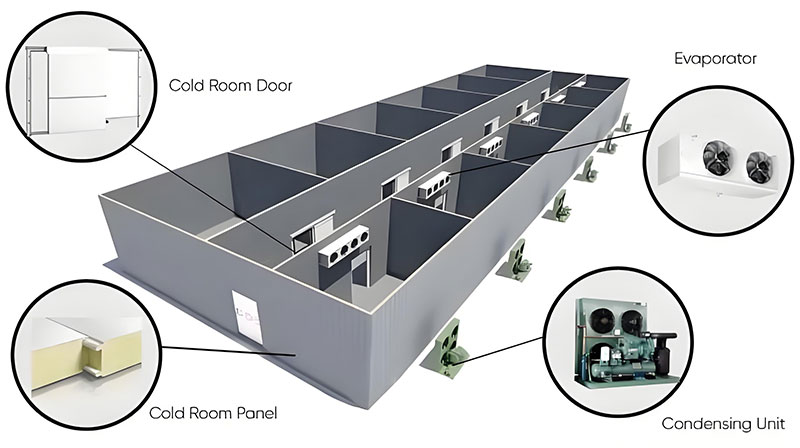

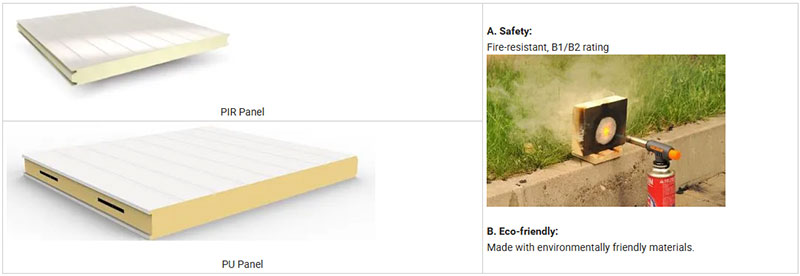

Cold Room Panel

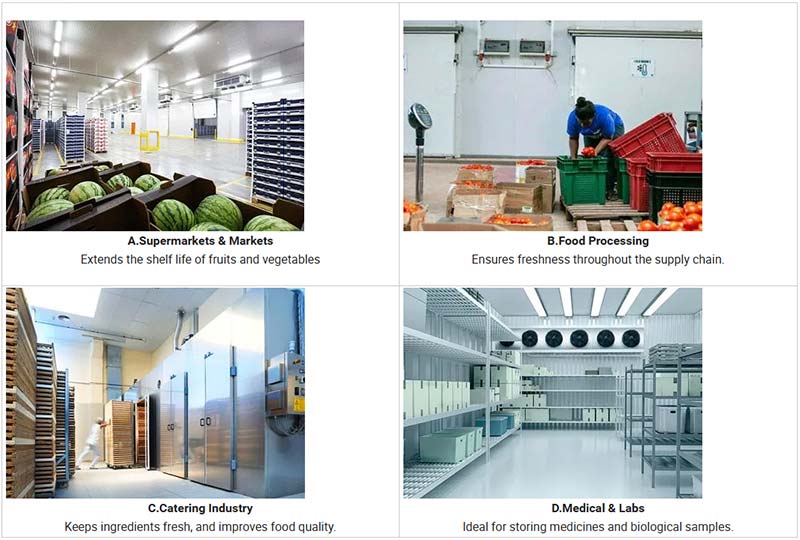

Applications of Cold Storage Facilities
- Deep-sea fishing vessels and container cold chain conversions;
- Supermarket supplementary cold storage and convenience store display cases;
- Food processing plants’ quick-freezing tunnels and pre-processing workshops;
- Farm pre-cooling and controlled atmosphere storage after harvesting.
Tempreture table for reference
| cold storage goods | tempreture range |
| processing room | 10C |
| fruit, vegetable, dry food | 0C~-5C |
| medicine, cake, pastry, chemical material | 0C~-5C |
| ice storage room | -5~-10C |
| fish, meat storage | -18~-25C |
| deep freezer | -25C~-35C |
Cold Room Door
Why choose our cold room compartments?
Food-grade safety: Both inner and outer walls are made of food-grade coated steel plates, non-toxic, odorless, easy to clean, and compliant with HACCP hygiene standards.
High efficiency and energy saving: Equipped with a high-efficiency inverter compressor and intelligent defrosting technology, saving over 30% more energy compared to traditional cold storage.
Global compatibility: Supports 220V/380V/440V full voltage, adaptable to different industrial plug standards such as US, European, and Australian standards.
Modular assembly: The eccentric hook connection design allows for disassembly and relocation, shortening the installation cycle by 50%.
Customize Your Cold Storage Solution Now
Whether it’s a small retail freezer or a massive industrial cold storage facility, we provide a one-stop service from design and production to global shipping.
We earn the long-term trust of global clients through unparalleled efficiency and relentless pursuit of quality excellence.
Production Workshop Display
The company has a modern production base of over 8,000 square meters, equipped with a steel structure welding workshop, two Italian‑imported sandwich panel production lines, three complete house production lines and an intelligent assembly system. The annual steel structure capacity reaches 150,000 tons, with a daily output of 3,000 square meters of high‑end sandwich panels and 200 sets of modular houses.
Product Packaging & Shipping
Our packing and shipping services offer customized, robust transportation solutions for every product category, ensuring your goods arrive safely worldwide. Steel structural components are packed with sturdy steel frames, forming stable transport units that effectively withstand the bumps and pressure of long-distance sea and land transport. Sandwich panels and container houses are fully wrapped with high-quality protective films, providing moisture, dust, and scratch protection while fully preserving the coating and appearance of the panels. We have deep expertise in export logistics; from packing methods to container loading, every step is professionally optimized to provide you with a worry-free and reliable delivery experience.
Why Choose Us?
- Compliance guaranteed: Complete international certifications, compatible with national standards, reducing application and acceptance risks.
- Cost controllable: Chinese supply and prefabricated construction result in overall cost savings of 15%-25%.
- Schedule guaranteed: BIM collaboration and factory prefabrication enable rapid production and a competitive market advantage.
- Reliable quality: Export-grade processes and rigorous testing ensure both structural safety and durability meet standards.
Frequently Ask Questions
Design drawings → Quotation → Confirmed drawings → Purchase order → Purchase order confirmation → 30% deposit payment → Production → Quality inspection → Balance payment → Shipment.
This depends on the order quantity and the complexity of the customization. Generally, for regular order quantities, delivery time is within 30 days after receiving the deposit.
Yes, samples can be provided, but customers need to pay for the sample fee and international express shipping.
You are welcome to send inspectors at any time. Inspections can be arranged not only during container loading but also at any time during the production process.
We are a manufacturing plant with over 120 employees and a factory area of over 10,000 square meters, where you can enjoy the best prices and competitive costs.
Yes, we have over 10 design engineers. They can create complete solution drawings based on your needs. Software they use includes: AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) V12.0, etc.
RuiSteel is a company that highly values quality. We hold ISO9001, BV, SGS, and FM certifications.
Yes, we will send you relevant information and photos at different stages of your order's production so you can get the latest updates in a timely manner.
