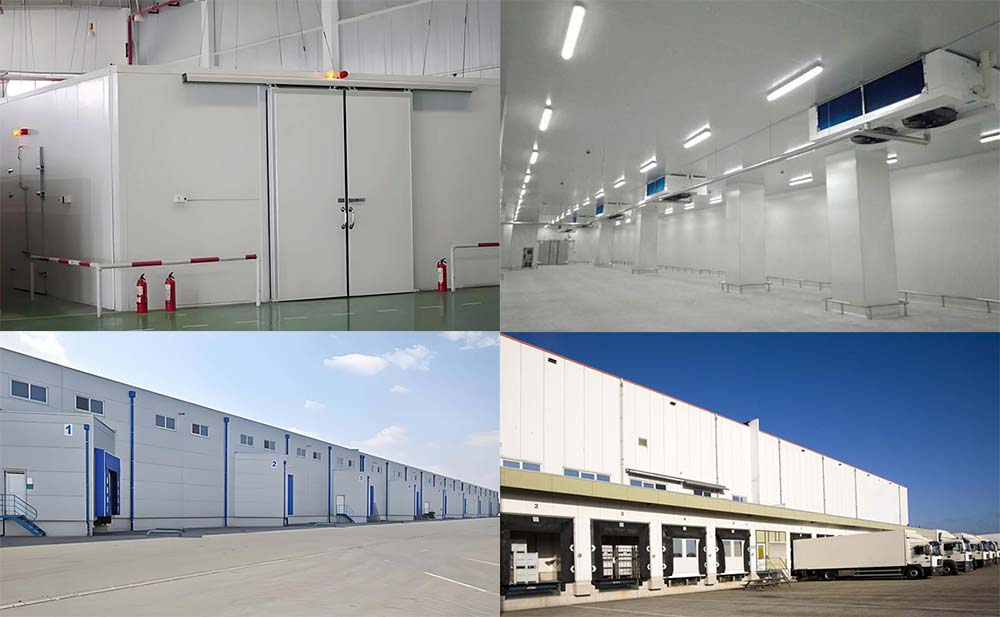

Stable Cooling Low Power Meat Freezer Room

Product Details

Designed specifically for freezer room of pork, beef, lamb, poultry, and other meats, this low-temperature cold storage maintains a stable temperature adjustable from -18℃ to -25℃, quickly locking in moisture from meat cells, inhibiting microbial growth, and ensuring long-term preservation of color, taste, and nutritional value.

The freezer room compartment is constructed with high-density polyurethane double-sided color steel insulation panels, 150mm thick, with eccentric hooks for tight splicing, effectively preventing cold air leakage and condensation.

The floor is covered with a pressure-bearing insulation layer and a non-slip surface, capable of withstanding heavy-duty shelving and frequent forklift access.

The refrigeration system uses semi-hermetic piston or screw compressor units, matched with high-efficiency cold air fans for forced circulation, controlling the temperature difference within ±1.5℃, achieving rapid cooling and constant temperature operation.

The electrical control system features intelligent temperature control, automatic defrosting switching, fault alarms, and remote monitoring functions, facilitating unattended management.

Structure and Composition

Insulated Panel System:

Material: High-density, moisture-resistant polyurethane (PU) or polystyrene (EPS) foam as the insulation core.

Core Material Differences:

• PU Panels: Offer superior insulation performance (lower thermal conductivity), higher structural strength, and better fire resistance. Suitable for scenarios with extremely high energy efficiency and durability requirements.
• EPS Panels: More cost-effective, lightweight, and able to meet a wide range of temperature requirements, making it an economical and efficient choice.

Finish: The panels are clad inside and out with durable, easy-to-clean food-grade stainless steel or coated galvanized steel. A variety of finishes are available to suit different facility environments.

Connection System: Utilizes a unique cam-lock or hook-and-loop design with thermal bridges. Ensures quick, tool-free installation, creating a highly airtight, thermally insulated sealed space, effectively preventing cold air leakage and condensation.

High-Efficiency Refrigeration System:

• Optional fully or semi-hermetic compressor units from internationally renowned brands (such as Bitzer and Emerson).
• Matched with high-efficiency evaporator and condenser units, operating quietly and cooling rapidly.
• The system is pre-charged with refrigerant and tested before leaving the factory, ensuring quick and easy connection.

Standard Accessories:

Heavy-Duty Warehouse Door: Equipped with robust hinged or sliding doors with sealing strips, built-in safety internal door handles, and optional observation windows.

High-Strength Flooring: Optional insulated flooring or heavy-duty non-slip flooring, capable of withstanding the weight of a manual hydraulic pallet trolley.

LED Lighting: Energy-saving LED light strips with a sealed design suitable for low-temperature environments, generating low heat.

Intelligent Microcomputer Controller: A user-friendly microcomputer controller with a clear display, allowing for precise temperature setting and monitoring, and issuing alarms in case of temperature anomalies or system malfunctions.

Application Scenarios

Slaughtering and Processing Plants: Equipped with quick-freezing and freezing warehouses at the rear of the slaughtering and cutting workshop, fresh meat is rapidly cooled to below -18°C after slaughter, locking in its initial freshness for large-scale temporary storage before further processing or distribution.

Meat Import and Export Trade: Providing bonded warehouses at ports and importers/exporters with frozen transit warehouses that meet international hygiene standards, satisfying the temperature and cleanliness requirements of various countries’ inspection and quarantine regulations, and ensuring temperature control throughout sea and land transport.

Cold Chain Logistics and Distribution Centers: Serving as regional cold chain hubs, connecting upstream slaughterhouses and downstream retail terminals, with built-in multi-temperature shelving for bulk storage, individual retrieval, sorting, and distribution, adapting to the high-frequency delivery needs of supermarkets, restaurants, e-commerce, and other channels.

Central Kitchens and Pre-prepared Food Processing Plants: Providing stable -18°C storage for raw meat and semi-finished products, forming a complete temperature-controlled workflow with refrigerated thawing rooms, ensuring large-scale production and processing while balancing food safety and scheduling efficiency.

Large Supermarkets and Membership-Based Warehouse Stores: Dedicated cold storage for meat is set up in the back-end warehouse to assist in the turnover of refrigerated display cases, ensuring fresh appearance and reducing spoilage. This is especially suitable for long-term stocking of bulk packaged meat.

Hotels, Restaurant Chains, and School/Hospital Canteens: Centralized procurement and storage of steaks, ribs, poultry, etc., based on usage volume. Cold storage provides long-term preservation, reduces supply frequency, stabilizes menu costs, and meets HACCP food safety traceability requirements.

Whether used in slaughterhouses, processing plants, logistics distribution centers, or meat import/export trade, this cold storage is modularly prefabricated, allowing for rapid on-site assembly. It can also be customized according to local power grid standards, fully meeting the food safety and cold chain regulations of various countries.

We earn the long-term trust of global clients through unparalleled efficiency and relentless pursuit of quality excellence.

Production Workshop Display

The company has a modern production base of over 8,000 square meters, equipped with a steel structure welding workshop, two Italian‑imported sandwich panel production lines, three complete house production lines and an intelligent assembly system. The annual steel structure capacity reaches 150,000 tons, with a daily output of 3,000 square meters of high‑end sandwich panels and 200 sets of modular houses.

Product Packaging & Shipping

Our packing and shipping services offer customized, robust transportation solutions for every product category, ensuring your goods arrive safely worldwide. Steel structural components are packed with sturdy steel frames, forming stable transport units that effectively withstand the bumps and pressure of long-distance sea and land transport. Sandwich panels and container houses are fully wrapped with high-quality protective films, providing moisture, dust, and scratch protection while fully preserving the coating and appearance of the panels. We have deep expertise in export logistics; from packing methods to container loading, every step is professionally optimized to provide you with a worry-free and reliable delivery experience.

Why Choose Us?

• Compliance guaranteed: Complete international certifications, compatible with national standards, reducing application and acceptance risks.
• Cost controllable: Chinese supply and prefabricated construction result in overall cost savings of 15%-25%.
• Schedule guaranteed: BIM collaboration and factory prefabrication enable rapid production and a competitive market advantage.
• Reliable quality: Export-grade processes and rigorous testing ensure both structural safety and durability meet standards.
