Custom Prefab Steel Garage Building Kits
| Place of Origin: | Zhengzhou,China |
|---|---|
| Brand Name: | RUIISTEEL |
| Materials: | Q235/Q355 Steel |
| Beam/Column: | H-Shaped Steel, Square Tube |
| Purlins: | C/Z Section Steel |
| Wall/Roof System: | Insulation Panel (EPS/PU/Rock Wool), Steel Plate |
| Accessory: | Drainage Pipe, Door, Window, Gutter |
| Certification: | CE, ISO, GB, AISC, SGS, BV |
| Service Life: | Over 50 Years |
| Delivery Time: | 30 Days After Receiving the Deposit |
| Payment: | T/T, L/C |
Product Details

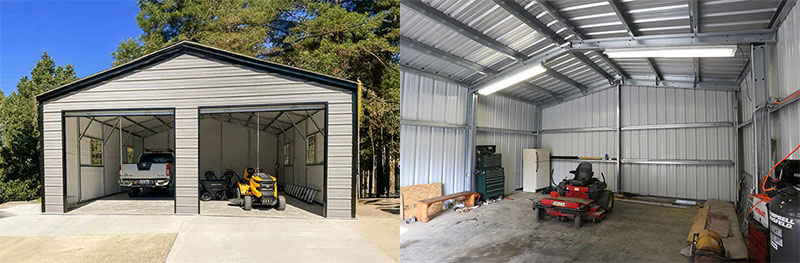

Whether for private car parking, tool storage, or as a small workshop or home storage space, custom prefabricated steel garages are becoming the first choice for users. RUIISTEEL’s prefab steel garage building kits combine industrial-grade strength with modular design to provide you with an efficient, economical, durable and flexibly expandable way to build a garage.
Features of Prefab Steel Garage Building Kits
Fully customized design
You are free to choose according to your needs:
Size: single parking space, double parking space, three parking spaces or larger, width 3m–12m, length can be combined in any combination.
Height: Regular 2.4m–4.5m, suitable for RV, campervan or minivan.
Roof Type: single pitch, double pitch, vaulted or flat roof.
Colors: Available in a variety of RAL color cards to match your architectural style.
Openings and Doors: rolling shutter doors, sliding doors, swing doors, remote control electric doors are optional.
Additional Features: ventilation windows, access doors, thermal insulation sandwich panels, LED lighting system, solar energy reserved interface.

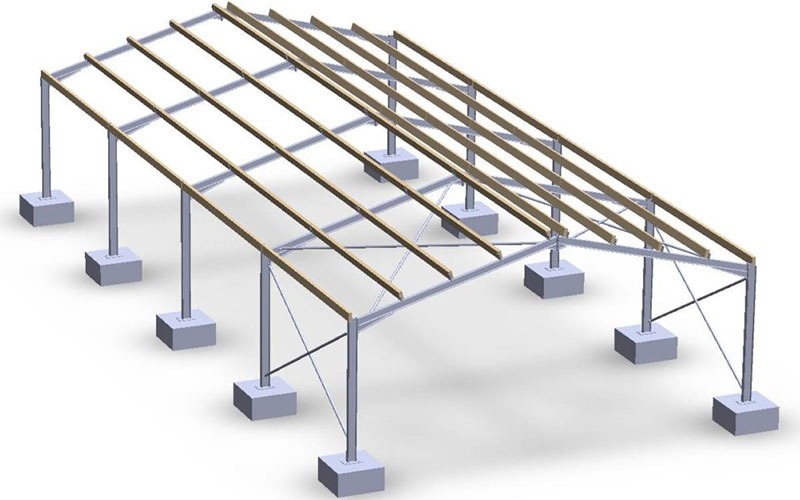

Industrial Grade Steel Structure
- Steel grade: Q355B / G300 (or equivalent material according to local standards);
- Surface treatment: hot-dip galvanizing (≥275g/m²) + optional powder coating;
- Connection method: high-strength galvanized bolts + lock nuts, no need for on-site welding;
- Foundation requirements: Can be adapted to concrete strip foundations, spiral piles or precast concrete piers.
Prefabricated Steel Garage Kits Including:
- Main steel frame (column + roof beam);
- Purlins and bracing systems;
- Wall panels and roof panels (color steel or sandwich panels optional);
- Connecting bolts and mounting hardware;
- Gutters and downspouts (optional);
- Detailed installation drawings (including Chinese and English/multi-language versions);
- Optional: foundation bolt embedded parts, doors, windows, sealing strips, insulation materials.
Technical Parameters (can be customized)
| Parameter | Standard Range | Remarks |
|---|---|---|
| Span | 3m – 12m | Single span or multi-span combination |
| Eave height | 2.2m – 4.5m | Customizable for higher clearance |
| Wind resistance | Up to 120 km/h (Beaufort scale 10) | Designed according to local wind pressure |
| Snow load | 0.3 – 1.5 kN/m² | Adaptable for heavy snowfall areas |
| Roof slope | 5° – 30° | Optimized for rainfall conditions |
| Design life | Over 50 years (with normal maintenance) | Galvanized coating ensures 20+ years without rust |
Why Choose Prefab Steel Garage?
- Quick installation: All components are prefabricated in the factory, and only bolt connections are needed on site, without welding, which greatly shortens the construction period.
- Reliable strength: Made of high-strength galvanized steel, it is wind-resistant, earthquake-resistant, snow-resistant, and adaptable to a variety of climate conditions.
- Low maintenance costs: The steel is anti-corrosion treated and will not rust, rot or termites.
- 100% expandable: add length, width or add side canopies, compartments, solar panels and more at any time.
- Environmentally friendly and recyclable: Steel is recyclable and there is very little construction waste.
Application Scenarios
Family home: Parks cars, motorcycles, bicycles and doubles as storage room.
Farms and Estates: Storage of farm machinery, tractors, feed or as a rain shelter for small livestock.
Small business: as a tool warehouse, repair station, express sorting shed or temporary warehouse.
Community and public facilities: shared bicycle sheds, battery car charging sheds, school bus parking spots.
RV and boat storage: large size, high-rise design, suitable for special vehicle parking.
We earn the long-term trust of global clients through unparalleled efficiency and relentless pursuit of quality excellence.
Production Workshop Display
The company has a modern production base of over 8,000 square meters, equipped with a steel structure welding workshop, two Italian‑imported sandwich panel production lines, three complete house production lines and an intelligent assembly system. The annual steel structure capacity reaches 150,000 tons, with a daily output of 3,000 square meters of high‑end sandwich panels and 200 sets of modular houses.
Product Packaging & Shipping
Our packing and shipping services offer customized, robust transportation solutions for every product category, ensuring your goods arrive safely worldwide. Steel structural components are packed with sturdy steel frames, forming stable transport units that effectively withstand the bumps and pressure of long-distance sea and land transport. Sandwich panels and container houses are fully wrapped with high-quality protective films, providing moisture, dust, and scratch protection while fully preserving the coating and appearance of the panels. We have deep expertise in export logistics; from packing methods to container loading, every step is professionally optimized to provide you with a worry-free and reliable delivery experience.
Why Choose Us?
- Compliance guaranteed: Complete international certifications, compatible with national standards, reducing application and acceptance risks.
- Cost controllable: Chinese supply and prefabricated construction result in overall cost savings of 15%-25%.
- Schedule guaranteed: BIM collaboration and factory prefabrication enable rapid production and a competitive market advantage.
- Reliable quality: Export-grade processes and rigorous testing ensure both structural safety and durability meet standards.
Frequently Ask Questions
Design drawings → Quotation → Confirmed drawings → Purchase order → Purchase order confirmation → 30% deposit payment → Production → Quality inspection → Balance payment → Shipment.
This depends on the order quantity and the complexity of the customization. Generally, for regular order quantities, delivery time is within 30 days after receiving the deposit.
Yes, samples can be provided, but customers need to pay for the sample fee and international express shipping.
You are welcome to send inspectors at any time. Inspections can be arranged not only during container loading but also at any time during the production process.
We are a manufacturing plant with over 120 employees and a factory area of over 10,000 square meters, where you can enjoy the best prices and competitive costs.
Yes, we have over 10 design engineers. They can create complete solution drawings based on your needs. Software they use includes: AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) V12.0, etc.
RuiSteel is a company that highly values quality. We hold ISO9001, BV, SGS, and FM certifications.
Yes, we will send you relevant information and photos at different stages of your order's production so you can get the latest updates in a timely manner.
