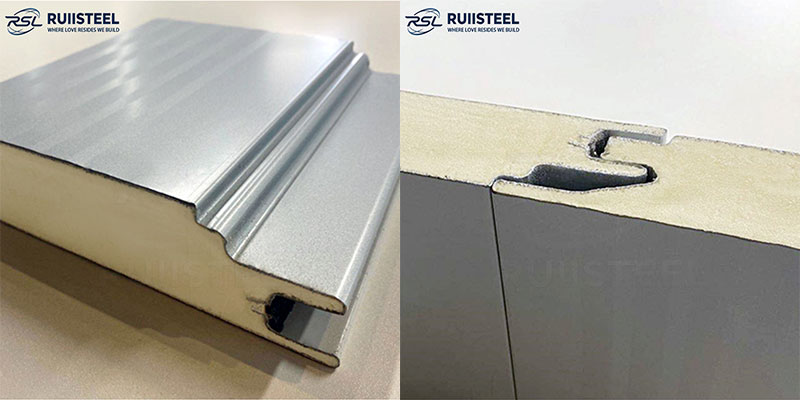

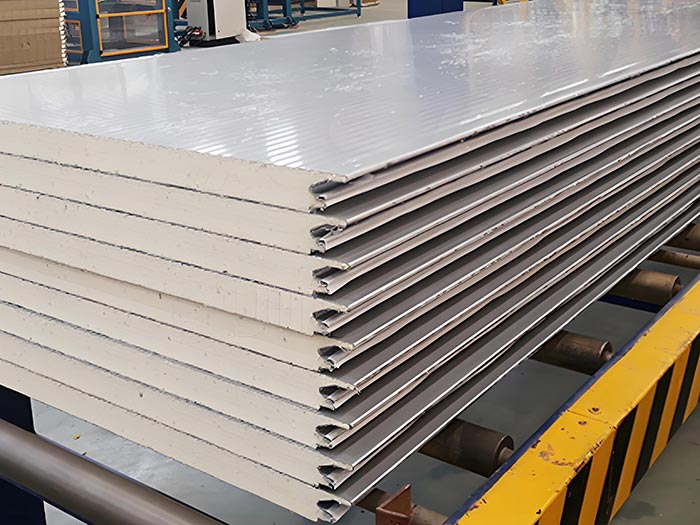

Polyurethane Sandwich Wall Panel
| Place of Origin: | Zhengzhou,China |
|---|---|
| Brand Name: | RUIISTEEL |
| Core Material: | PU/PIR/PUR/PUF |
| Panel Thickness: | 50/75/80/100/120/150mm |
| Effective Width: | 500-1000mm (Regular 1000mm) |
| Length of Panel: | ≤11.8 meters |
| Metal Sheet Thickness: | 0.4-0.8mm |
| Firepro of Grade: | B1 |
| Certification: | CE, ISO, GB, AISC, SGS, BV |
| Service Life: | Over 30 Years |
| Payment: | T/T, L/C |
Product Details
The polyurethane sandwich wall panel produced (seamless version) by Henan Ruii Steel Construction Engineering Co.,Ltd. is a high-quality external wall enclosure material integrating thermal insulation, heat insulation, waterproofing and decoration. It is suitable for various external wall needs of buildings, with both practicality and aesthetics. The product supports two installation methods for external walls: vertical installation and horizontal installation, which can flexibly adapt to the design needs of different buildings such as industrial plants, office buildings and commercial complexes. It is convenient and efficient to install, greatly shortening the construction period.
The panel adopts a composite structure of “face panel + PU/PIR core + back panel”. The core has excellent thermal insulation and sound insulation performance, which can effectively reduce building energy consumption and meet the standards of energy-saving buildings. The face panel is weather-resistant, corrosion-resistant and uniform in color. After installation, the wall surface is flat and seamless, with a simple and elegant overall texture. Aiming at the problem of easy water leakage in vertical installation, the product adopts a scientific node design, accurately optimizes the sealing structure, fundamentally eliminates the hidden danger of rainwater leakage, ensures the stability and durability of the external wall for long-term use, and is the preferred product for high-quality external wall energy-saving enclosure.

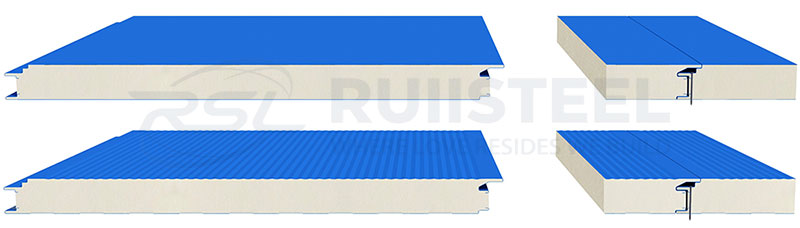

Polyurethane Wall Sandwich Panel（seamless version)
| Product Name | PU Wall Sandwich Panel | PIR Wall Sandwich Panel |
| Metal sheet | 0.4-0.8mm
1) color prepainted galvanized steel sheet 2) Aluminium zinc sheet, 3) stainless steel sheet, 4)Aluminum Magnesium Manganese sheet |
|
| Thickness | 50/75/80/100/120/150mm | |
| Effective width | 500-1000mm (Regular 1000mm) | |
| Length of panel | ≤11.8 meters | |
| Core material | PU(Polyurethane) | PIR ( polyisocyanurate ) |
| Density | 40~42 KG/M3 | 45~48KG/M3 |
| Thermal conductivity (25℃) | ≤0.022/(m.k) | ≤0.0195w/(m.k) |
| Heat-resistant range | -185℃ ~ 110℃（PUR foam) | -196℃ ~ 205℃(PIR foam) |
| Long-term continuous use below 85℃(PUR sandwich panel) | Long-term continuous use below 150℃(PIR sandwich panel) | |
| Closed cell rate | ≥97% | ≥97% |
| Compression strength | 185 Kpa | 220 Kpa |
| Water absorption rate | 2.5-3% | up to 0.9% |
| Fireproof grade | B2 | B1 |
| Combustion performance | ≥ D | ≥ B |
| Color of steel plate | White grey,silver gray,sea-blue,crimson or as per RAL | |
| Exterior / Interior surface profile | Flat,Relief,Small wave, Square wave | |
| Painting | Polyester PE/SMP/HDP/PVDF coating etc. | |
| Installation method | 1. horizontal; 2. vertical | |
| Joint type | hidden self-tapping screw connection | |

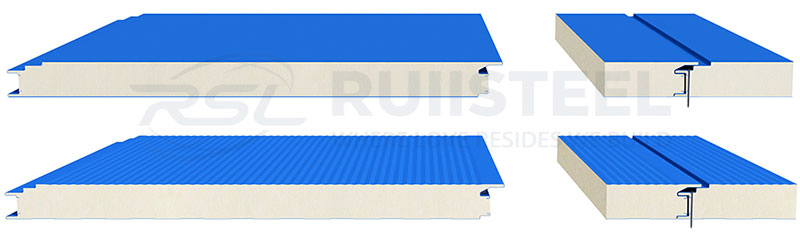

Polyurethane Wall Sandwich Panel（seamed version)
The PU/PIR building external wall panel (seamed version) is a new type of external wall enclosure material integrating thermal insulation, heat insulation, waterproofing and decoration. It is mainly suitable for horizontal installation of external walls and is widely used in various buildings such as industrial plants, office buildings and commercial complexes. The panel joints can be flexibly adjusted, and combined with the four-sided tongue-and-groove process, it can present an exquisite aluminum curtain wall effect after construction, with both practicality and aesthetics.
| Product Name | PU Wall Sandwich Panel | PIR Wall Sandwich Panel |
| Metal sheet | 0.4-0.8mm 1) color prepainted galvanized steel sheet 2) Aluminium zinc sheet, 3) stainless steel sheet, 4)Aluminum Magnesium Manganese sheet | |
| Thickness | 50/75/80/100/120/150mm | |
| Effective width | 500-1000mm (Regular 1000mm) | |
| Length of panel | ≤11.8 meters | |
| Core material | PU (Polyurethane) | PIR ( polyisocyanurate ) |
| Density | 40~42 KG/M3 | 45~48 KG/M3 |
| Thermal conductivity (25℃) | ≤0.022/(m.k) | ≤0.0195w/(m.k) |
| Heat-resistant range | -185℃ ~ 110℃（PU foam) | -196℃ ~ 205℃(PIR foam) |
| Long-term continuous use below 85℃(PU sandwich panel) | Long-term continuous use below 150℃(PIR sandwich panel) | |
| Closed cell rate | ≥97% | ≥97% |
| Compression strength | 185 Kpa | 220 Kpa |
| Water absorption rate | 2.5-3% | up to 0.9% |
| Fireproof grade | B2 | B1 |
| Combustion performance | ≥ D | ≥ B |
| Color of steel plate | White grey,silver gray,sea-blue,crimson or as per RAL | |
| Exterior / Interior surface profile | Flat,Relief,Small wave, Square wave | |
| Painting | Polyester PE/SMP/HDP/PVDF coating etc. | |
| Installation method | 1. horizontal; 2. vertical | |
| Joint type | Plug in type hidden screw mounted | |
The panel adopts a composite structure of “face panel + PU/PIR core + back panel”. The core has excellent thermal insulation and sound insulation performance, which can effectively reduce building energy consumption; the face panel can be selected from color-coated steel plates or aluminum plates, which are weather-resistant and corrosion-resistant, without the need for additional decoration. The product is convenient to construct and has strong durability, suitable for different climate zones, especially for projects with high requirements on thermal insulation, construction efficiency and decorative effect, with outstanding cost performance.
Allowable span and heat transfer coefficient of RUIISTEEL’s polyurethane sandwich wall panel (allowable deflection f≤L/200 ).
| Thickness of Panel | Heat Conductivity | Weight | Load Capacity | |||||
| mm | W/M2K | kg/m2 | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50 | 0.31 | 10.06 | L(m) | 3.52 | 3.04 | 2.69 | 2.42 | 2.11 |
| 75 | 0.21 | 11.06 | L(m) | 4.71 | 4.09 | 3.64 | 3.29 | 2.89 |
| 100 | 0.19 | 12.05 | L(m) | 5.76 | 5.02 | 4.47 | 4.05 | 3.56 |
| 120 | 0.16 | 12.84 | L(m) | 6.53 | 5.68 | 5.07 | 4.6 | 4.04 |
| 150 | 0.11 | 14.04 | L(m) | 7.56 | 6.58 | 5.87 | 5.32 | 4.68 |
We earn the long-term trust of global clients through unparalleled efficiency and relentless pursuit of quality excellence.
Production Workshop Display
The company has a modern production base of over 8,000 square meters, equipped with a steel structure welding workshop, two Italian‑imported sandwich panel production lines, three complete house production lines and an intelligent assembly system. The annual steel structure capacity reaches 150,000 tons, with a daily output of 3,000 square meters of high‑end sandwich panels and 200 sets of modular houses.
Product Packaging & Shipping
Our packing and shipping services offer customized, robust transportation solutions for every product category, ensuring your goods arrive safely worldwide. Steel structural components are packed with sturdy steel frames, forming stable transport units that effectively withstand the bumps and pressure of long-distance sea and land transport. Sandwich panels and container houses are fully wrapped with high-quality protective films, providing moisture, dust, and scratch protection while fully preserving the coating and appearance of the panels. We have deep expertise in export logistics; from packing methods to container loading, every step is professionally optimized to provide you with a worry-free and reliable delivery experience.
Why Choose Us?
- Compliance guaranteed: Complete international certifications, compatible with national standards, reducing application and acceptance risks.
- Cost controllable: Chinese supply and prefabricated construction result in overall cost savings of 15%-25%.
- Schedule guaranteed: BIM collaboration and factory prefabrication enable rapid production and a competitive market advantage.
- Reliable quality: Export-grade processes and rigorous testing ensure both structural safety and durability meet standards.
Frequently Ask Questions
Design drawings → Quotation → Confirmed drawings → Purchase order → Purchase order confirmation → 30% deposit payment → Production → Quality inspection → Balance payment → Shipment.
This depends on the order quantity and the complexity of the customization. Generally, for regular order quantities, delivery time is within 30 days after receiving the deposit.
Yes, samples can be provided, but customers need to pay for the sample fee and international express shipping.
You are welcome to send inspectors at any time. Inspections can be arranged not only during container loading but also at any time during the production process.
We are a manufacturing plant with over 120 employees and a factory area of over 10,000 square meters, where you can enjoy the best prices and competitive costs.
Yes, we have over 10 design engineers. They can create complete solution drawings based on your needs. Software they use includes: AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) V12.0, etc.
RuiSteel is a company that highly values quality. We hold ISO9001, BV, SGS, and FM certifications.
Yes, we will send you relevant information and photos at different stages of your order's production so you can get the latest updates in a timely manner.
