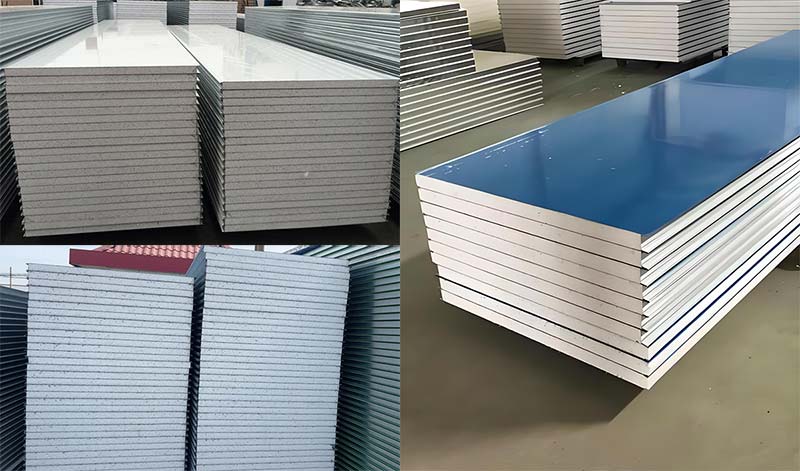

Waterproof EPS Foam Core Partition Walls

Product Details

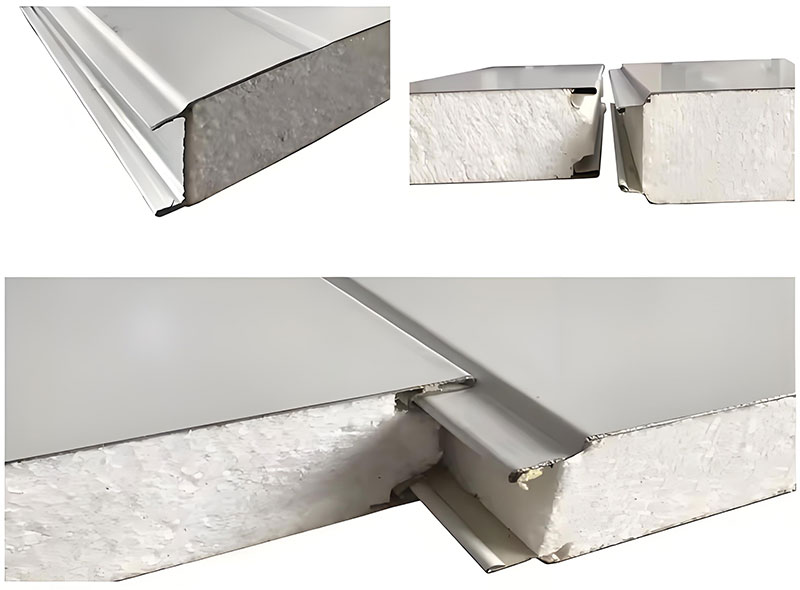

EPS foam core partition walls are lightweight partition systems designed for industrial and commercial buildings requiring moisture protection, insulation, and rapid space division. The core material is high-density EPS foam with a closed-cell structure, low water absorption, and excellent thermal and sound insulation properties. The panels are finished with waterproof-coated color steel plates, cement fiberboard, or stainless steel plates, with joints treated with waterproof strips and specialized fasteners, achieving overall wall impermeability, moisture resistance, and mold prevention, making them particularly suitable for frequently cleaned or high-humidity environments.

EPS foam core partition walls are modular and prefabricated, with wide, lightweight panels that can be flexibly cut and assembled without wet work, significantly improving installation efficiency compared to traditional masonry and facilitating container loading. The system includes corner pieces, skirting boards, door frames, and sealing kits for seamless integration with existing building structures.

Type	EPS Sandwich Wall Panel
Density	8/10/12/14/16/18/20kg/m³
Thickness	50/75/100/120/150/200mm
Metal skin thickness	0.4~0.8mm
Panel Effective Width	950/1150mm for wall and 950mm for roof
Skin material	PPGL,PPGI,Stainless steel,aluminum coil
Pre-painted	PE/SMP/HDP/PVDF etc.
Fireproof Grade	B2
Thermal Conductivity	0.042
Temperature Range	-40~90ºC
Length	Max 11.9m or Customized.

Standard thicknesses for EPS wall sandwich panels range from 50mm to 200mm, with common widths of 950mm, 1000mm, and 1150mm. Lengths can be customized to project requirements. The panels weigh only 10.0–13.6 kg/m², have a thermal conductivity ≤0.039 W/(m·K), and offer approximately 19 dB of sound insulation (75 mm thick).

EPS foam core wall panel typically have a fire rating of B2 (self-extinguishing) and can be upgraded to B1 (difficult to burn) by using flame-retardant materials. With advantages such as lightweight, high strength, thermal insulation, convenient construction, and economic and environmental friendliness, EPS sandwich panels are widely used in various locations including large industrial plants, steel structure warehouses, logistics warehouses, cold storage facilities, temporary buildings, and prefabricated houses.

Advantages of EPS Sandwich Panels

Lightweight and High Strength: Weighing only 10–13.6 kg/m², effectively reducing the load on steel structures and foundation costs.

Excellent Thermal Insulation: The closed-cell EPS core material has a thermal conductivity as low as 0.039 W/(m·K), resulting in significant energy savings.

Highly Efficient Construction: Modular panel design allows for dry on-site installation, reducing construction time by over 40% compared to traditional wet methods.

Economical and Durable: Significant material cost advantages; overall service life can reach over 35 years.

Applications of EPS core wall panels:

• Dry and wet separation in food processing workshops and central kitchens;
• Internal temperature zone separation in cold storage and refrigerated trucks;
• Buffer partitions in pharmaceutical and electronic cleanrooms;
• Functional area division in logistics warehouses;
• Temporary exhibition halls and camp buildings.

By adjusting the panel material and thickness, different fire resistance ratings, load-bearing and insulation requirements can be met, fully matching local climate conditions and building codes.

We earn the long-term trust of global clients through unparalleled efficiency and relentless pursuit of quality excellence.

Production Workshop Display

The company has a modern production base of over 8,000 square meters, equipped with a steel structure welding workshop, two Italian‑imported sandwich panel production lines, three complete house production lines and an intelligent assembly system. The annual steel structure capacity reaches 150,000 tons, with a daily output of 3,000 square meters of high‑end sandwich panels and 200 sets of modular houses.

Product Packaging & Shipping

Our packing and shipping services offer customized, robust transportation solutions for every product category, ensuring your goods arrive safely worldwide. Steel structural components are packed with sturdy steel frames, forming stable transport units that effectively withstand the bumps and pressure of long-distance sea and land transport. Sandwich panels and container houses are fully wrapped with high-quality protective films, providing moisture, dust, and scratch protection while fully preserving the coating and appearance of the panels. We have deep expertise in export logistics; from packing methods to container loading, every step is professionally optimized to provide you with a worry-free and reliable delivery experience.

Why Choose Us?

• Compliance guaranteed: Complete international certifications, compatible with national standards, reducing application and acceptance risks.
• Cost controllable: Chinese supply and prefabricated construction result in overall cost savings of 15%-25%.
• Schedule guaranteed: BIM collaboration and factory prefabrication enable rapid production and a competitive market advantage.
• Reliable quality: Export-grade processes and rigorous testing ensure both structural safety and durability meet standards.
