Portal Frame Steel Structure Workshop Factory
| Place of Origin: | Zhengzhou,China |
|---|---|
| Brand Name: | RUIISTEEL |
| Materials: | Q235/Q355 Steel |
| Beam/Column: | H-Shaped Steel |
| Purlins: | C/Z Section Steel |
| Wall/Roof System: | Insulation Panel (EPS/PU/Rock Wool), Steel Plate |
| Accessory: | Crane, Drainage Pipe, Door, Window |
| Certification: | CE, ISO, GB, AISC, SGS, BV |
| Service Life: | Over 50 Years |
| Delivery Time: | 30 Days After Receiving the Deposit |
| Payment: | T/T, L/C |
Product Details

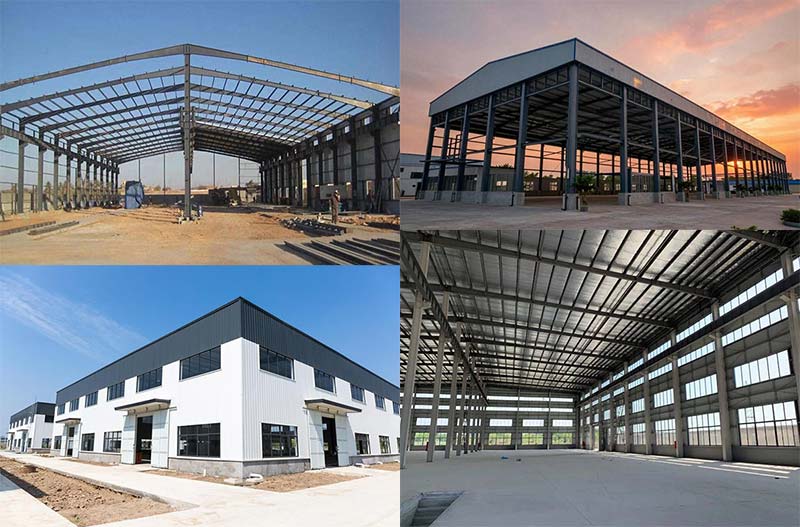

With its robust structure, spacious layout, and efficient construction, the portal frame steel structure workshop factory is an ideal architectural solution for modern industrial plants, warehousing, logistics, and production processing.
Steel structure workshop factory utilize a portal frame system composed of solid-web or lattice steel columns and beams, creating a large-span, column-free, open interior space that effectively improves workshop utilization and production line layout flexibility.
|
Specifications:
|
|
|
main steel frame
|
H section steel beam and columns, painted or galvanized, galvanized C section or steel pipe
|
|
Secondary frame
|
hot dip galvanized C purlin , steel bracing , tie bar , knee brace , edge cover etc.
|
|
Roof panel
|
EPS sandwich panel,glass fiber sandwich panel,rock wool sandwich panel,and PU sandwich panel or steel sheet
|
|
Wall panel
|
Sandwich Panel or Corrugated Steel Sheet
|
|
Tie Rod
|
Circular Steel Tube
|
|
Brace
|
Round Bar
|
|
Knee Brace
|
Angle Steel
|
|
Roof Gutter
|
Color Steel Sheet
|
|
Drawings & Quotation:
|
|
|
(1) Customized design is welcomed.
|
|
|
(2) In order to give you an exactly quotation and drawings, please let us know the length, width, eave height and local weather. We will quote for you promptly (7*24 hours service).
|
|

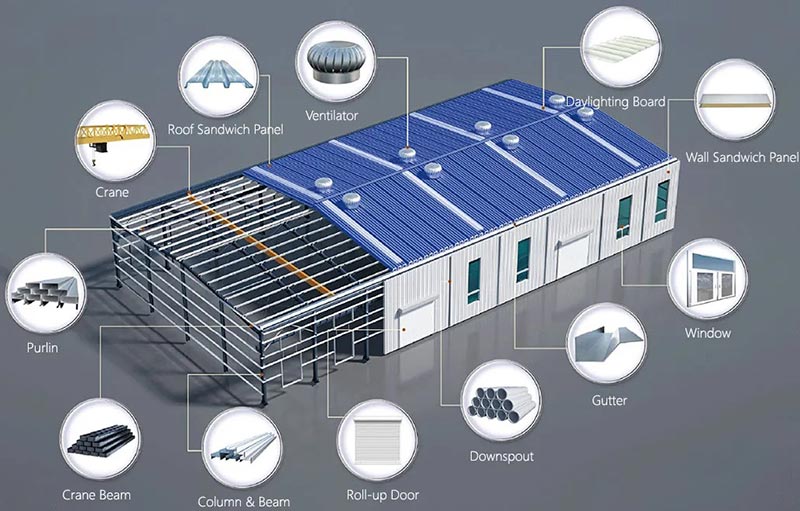

Steel Structure Kits
Enclosure System Wall/Roof Panels
Features of Portal Frame Steel Structure Workshops:
Large Span, Flexible Layout
Common spans range from 12 to 36 meters, with even larger spans possible. The absence of internal columns allows for flexible arrangement of cranes, assembly lines, storage racks, and other equipment.
Economical Steel Consumption
Compared to traditional concrete structures, portal frames are lighter, have lower foundation costs, and optimized overall steel consumption, resulting in a more competitive overall cost.
Short Construction Cycle
Prefabricated steel components in the factory and connected on-site with high-strength bolts allow for rapid construction, unaffected by seasonal changes, and significantly shorten the construction period.
Safe, durable, and highly earthquake-resistant
Made with high-strength steel such as Q355B, treated with anti-corrosion and fire-retardant coatings; excellent structural ductility and superior earthquake resistance, meeting national standards and safety regulations.
Scalable and easily modifiable
The regular structural system facilitates future additions, expansions, or upgrades to internal equipment, adapting to changes in business development.
Modern appearance, compatible with various enclosure systems
Can be combined with color steel sandwich panels, single-layer profiled steel sheets, skylights, insulation layers, etc., meeting multiple needs such as insulation, heat insulation, ventilation, and lighting.
Portal frame steel structure workshop factory is widely applicable to various industrial and civil building scenarios such as machinery manufacturing, auto parts, electronic assembly, logistics warehousing, and agricultural product processing. Customized design, processing, and installation services are available to meet user needs in a one-stop service.
We earn the long-term trust of global clients through unparalleled efficiency and relentless pursuit of quality excellence.
Production Workshop Display
The company has a modern production base of over 8,000 square meters, equipped with a steel structure welding workshop, two Italian‑imported sandwich panel production lines, three complete house production lines and an intelligent assembly system. The annual steel structure capacity reaches 150,000 tons, with a daily output of 3,000 square meters of high‑end sandwich panels and 200 sets of modular houses.
Product Packaging & Shipping
Our packing and shipping services offer customized, robust transportation solutions for every product category, ensuring your goods arrive safely worldwide. Steel structural components are packed with sturdy steel frames, forming stable transport units that effectively withstand the bumps and pressure of long-distance sea and land transport. Sandwich panels and container houses are fully wrapped with high-quality protective films, providing moisture, dust, and scratch protection while fully preserving the coating and appearance of the panels. We have deep expertise in export logistics; from packing methods to container loading, every step is professionally optimized to provide you with a worry-free and reliable delivery experience.
Why Choose Us?
- Compliance guaranteed: Complete international certifications, compatible with national standards, reducing application and acceptance risks.
- Cost controllable: Chinese supply and prefabricated construction result in overall cost savings of 15%-25%.
- Schedule guaranteed: BIM collaboration and factory prefabrication enable rapid production and a competitive market advantage.
- Reliable quality: Export-grade processes and rigorous testing ensure both structural safety and durability meet standards.
Frequently Ask Questions
Design drawings → Quotation → Confirmed drawings → Purchase order → Purchase order confirmation → 30% deposit payment → Production → Quality inspection → Balance payment → Shipment.
This depends on the order quantity and the complexity of the customization. Generally, for regular order quantities, delivery time is within 30 days after receiving the deposit.
Yes, samples can be provided, but customers need to pay for the sample fee and international express shipping.
You are welcome to send inspectors at any time. Inspections can be arranged not only during container loading but also at any time during the production process.
We are a manufacturing plant with over 120 employees and a factory area of over 10,000 square meters, where you can enjoy the best prices and competitive costs.
Yes, we have over 10 design engineers. They can create complete solution drawings based on your needs. Software they use includes: AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) V12.0, etc.
RuiSteel is a company that highly values quality. We hold ISO9001, BV, SGS, and FM certifications.
Yes, we will send you relevant information and photos at different stages of your order's production so you can get the latest updates in a timely manner.
