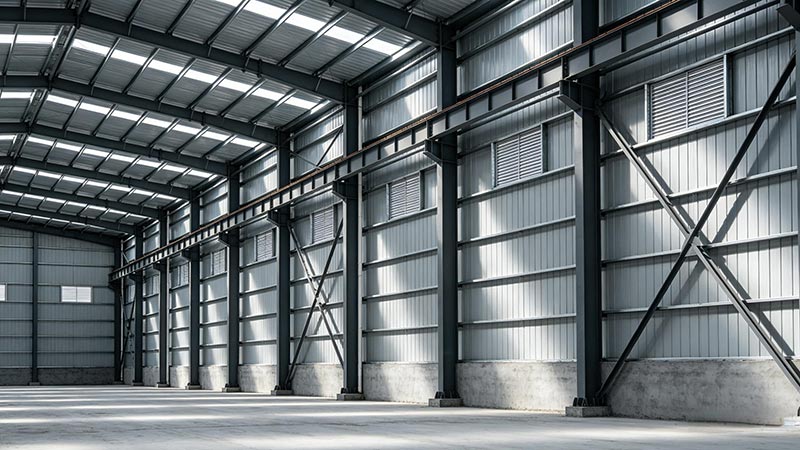

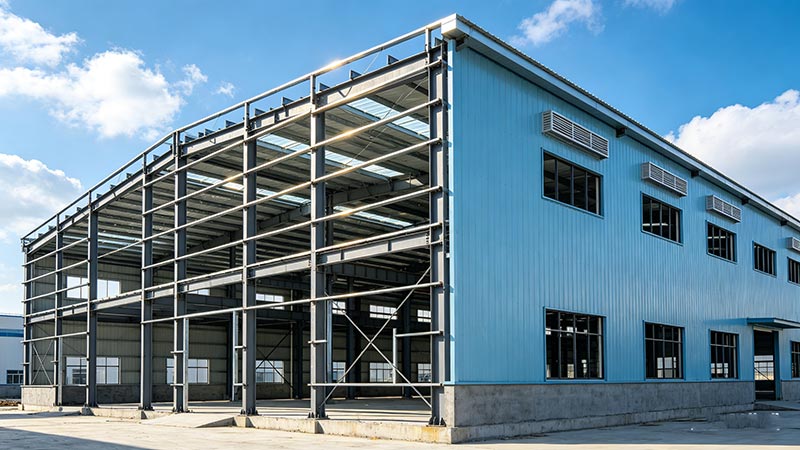

Industrial Steel Prefabricated Factory Building
| Place of Origin: | Zhengzhou,China |
|---|---|
| Brand Name: | RUIISTEEL |
| Materials: | Q235/Q355 Steel |
| Beam/Column: | H-Shaped Steel |
| Purlins: | C/Z Section Steel |
| Wall/Roof System: | Insulation Panel (EPS/PU/Rock Wool), Steel Plate |
| Accessory: | Crane, Drainage Pipe, Door, Window |
| Certification: | CE, ISO, GB, AISC, SGS, BV |
| Service Life: | Over 50 Years |
| Delivery Time: | 30 Days After Receiving the Deposit |
| Payment: | T/T, L/C |
Product Details
Industrial steel prefabricated factory building is a building system based on advanced engineering design and digital manufacturing. The core lies in decomposing the building into standard or customized steel components, producing high-precision prefabrication in a controlled factory environment, and then transporting them to the project site for efficient assembly. It is not only a building, but also a complete industrial space solution that can be quickly deployed, has excellent performance, and is future oriented.
| Specifications | |
| Size(m): | Width * Length * Height; |
| Type: | Single slope, double slope, Multi-slope; Single span, double-span, Multi-span; Single floor, double-floor, Multi-floor; |
| Base: | steel foundation bolts |
| Steel frame: | Material Q345(S355JR)(Gr50)or Q235(S235JR) steel; Straight cross-section or Variable cross-section; steel welded H section painted or galvanized. |
| Bracing: | X-type or V-type or other type bracing made from angle, round bar, etc ; |
| Wall & Roof Purlin: | C section channel or Z section channel ,Size from C80~C300; Z100~Z300; |
| Roof & wall cladding | Single color corrugated steel sheet 0.326~0.7mm thickness; Sandwich panel with EPS, ROCK WOOL,GLASS WOOL, PU etc insulation, thickness around 50mm 75mm 100mm 120mm 150mm 200mm; recommend coating PVDF SMP HDP PE |
| Window: | UPVC/PVC or Aluminum Alloy window frame with glass. |
| Door: | Exterior door:Sliding or Roller shutter door. Internal door:50mm thickness EPS sandwich panel with an aluminum alloy door frame |
| Gutter material: | Color steel sheet or galvanized steel or stainless steel; |
| Rainspout: | PVC pipe |
| Connection | high strength bolts ,intensive bolt,self-drilling screws. |
| Accessories: | Skylight panel, Ventilation, Fasteners etc |
| Surface process: | Shot blasting Sa2.5;Two layers of Anti-rust Painting or galvanized |
| Packing: | Main steel frame without packing load in 40′ GP, roof and wall panel load in 40′ HQ |
Steel Structure Kits
Wide Application Areas
🏭 Manufacturing: Automotive parts, heavy machinery, and electronics production workshops.
📦 Logistics and Warehousing: Regional distribution centers, cold chain warehouses, and automated storage and retrieval systems.
🔋 New Energy: Photovoltaic product manufacturing, battery production, and wind power equipment assembly plants.
🧪 Chemical Industry: Light-duty production workshops, packaging areas, and warehousing facilities.
⚙️ Others: Aircraft hangars, maintenance centers, and large sports facilities.
Advantages of Prefabricated Factory Building
Rapid Delivery, Accelerated Return on Investment
- Parallel construction in the factory and on-site shortens the construction period by 30%-50% compared to traditional methods.
- Rapid production means earlier returns, significantly reducing project time costs and capital tied up.
Life Cycle Economics
- Controllable Construction Costs: Standardized design, mass prefabrication, and rapid installation significantly reduce labor and on-site management costs.
- Low Operating Costs: Excellent thermal insulation performance (optional) reduces energy consumption; durable structure reduces long-term maintenance costs.
- Fundamental Cost Savings: Lightweight construction requires less stringent foundation conditions, saving on civil engineering costs.
Robust and Durable, Safe and Reliable
- The main structure is constructed of high-strength steel, ensuring structural stability and conforming to international standards for wind, earthquake, and snow load resistance.
- Advanced anti-corrosion treatments such as plating and spraying ensure a long service life even in harsh industrial environments.
Flexibility and Expandability
- Large-span column-free space: Provides a spacious and complete interior, maximizing utilization efficiency and facilitating flexible production line layout.
- Modular design: Supports easy future horizontal expansion or vertical additions, seamlessly adapting to business growth and process changes.
Green and Sustainable
- The main steel material is 100% recyclable, making it a truly green building material.
- Construction is primarily dry-work, minimizing construction waste and environmental impact.
- The roof is perfectly suited for distributed photovoltaic systems, contributing to the green energy transition.
Technical Features and Customization Capabilities
- Structural Systems: Various structural forms, including portal steel frames and multi-story frames, are available to meet load and span requirements.
- Enclosure System: Diverse selection of wall and roofing materials (such as profiled steel sheets and sandwich panels) to meet various insulation, fireproofing, and aesthetic requirements.
- Customized Design: From dimensions, height, and crane rails to ventilation, lighting, and door/window layout, everything can be tailored to specific process flows.
- Intelligent Integration: Pre-designed data interfaces facilitate integration with intelligent lighting, security, and energy management systems.
Our Global Service Commitment
- International Standards Compliance: Design and manufacturing comply with international standards (such as AISC, EN, ISO, etc.) and local standards in the project location.
- Integrated Solutions: Providing end-to-end services from conceptual design, detailed engineering, manufacturing, export certification, logistics to on-site installation guidance.
- Global Project Experience: A product and service network covering multiple countries, with in-depth understanding of the needs and challenges of different markets.
- Quality Assurance System: ISO quality management system certified, with strict control throughout the entire process to ensure the precision and quality of every component.
Choosing steel structure prefabricated factory building means choosing a faster, more economical, stronger, and smarter starting point. We sincerely invite global investors, developers, and enterprises to discuss and create exceptional production spaces that drive future growth for you.
We earn the long-term trust of global clients through unparalleled efficiency and relentless pursuit of quality excellence.
Production Workshop Display
The company has a modern production base of over 8,000 square meters, equipped with a steel structure welding workshop, two Italian‑imported sandwich panel production lines, three complete house production lines and an intelligent assembly system. The annual steel structure capacity reaches 150,000 tons, with a daily output of 3,000 square meters of high‑end sandwich panels and 200 sets of modular houses.
Product Packaging & Shipping
Our packing and shipping services offer customized, robust transportation solutions for every product category, ensuring your goods arrive safely worldwide. Steel structural components are packed with sturdy steel frames, forming stable transport units that effectively withstand the bumps and pressure of long-distance sea and land transport. Sandwich panels and container houses are fully wrapped with high-quality protective films, providing moisture, dust, and scratch protection while fully preserving the coating and appearance of the panels. We have deep expertise in export logistics; from packing methods to container loading, every step is professionally optimized to provide you with a worry-free and reliable delivery experience.
Why Choose Us?
- Compliance guaranteed: Complete international certifications, compatible with national standards, reducing application and acceptance risks.
- Cost controllable: Chinese supply and prefabricated construction result in overall cost savings of 15%-25%.
- Schedule guaranteed: BIM collaboration and factory prefabrication enable rapid production and a competitive market advantage.
- Reliable quality: Export-grade processes and rigorous testing ensure both structural safety and durability meet standards.
Frequently Ask Questions
Design drawings → Quotation → Confirmed drawings → Purchase order → Purchase order confirmation → 30% deposit payment → Production → Quality inspection → Balance payment → Shipment.
This depends on the order quantity and the complexity of the customization. Generally, for regular order quantities, delivery time is within 30 days after receiving the deposit.
Yes, samples can be provided, but customers need to pay for the sample fee and international express shipping.
You are welcome to send inspectors at any time. Inspections can be arranged not only during container loading but also at any time during the production process.
We are a manufacturing plant with over 120 employees and a factory area of over 10,000 square meters, where you can enjoy the best prices and competitive costs.
Yes, we have over 10 design engineers. They can create complete solution drawings based on your needs. Software they use includes: AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) V12.0, etc.
RuiSteel is a company that highly values quality. We hold ISO9001, BV, SGS, and FM certifications.
Yes, we will send you relevant information and photos at different stages of your order's production so you can get the latest updates in a timely manner.
