Rock Wool Sandwich Roof Panel
| Place of Origin: | Zhengzhou,China |
|---|---|
| Brand Name: | RUIISTEEL |
| Core Material: | Rock Wool |
| Panel Thickness: | 50/60/75/80/100/150mm |
| Effective Width: | 1000mm |
| Length of Panel: | Customized |
| Metal Sheet Thickness: | 0.4-0.8mm |
| Firepro of Grade: | A |
| Certification: | CE, ISO, GB, AISC, SGS, BV |
| Service Life: | Over 30 Years |
| Payment: | T/T, L/C |
Product Details

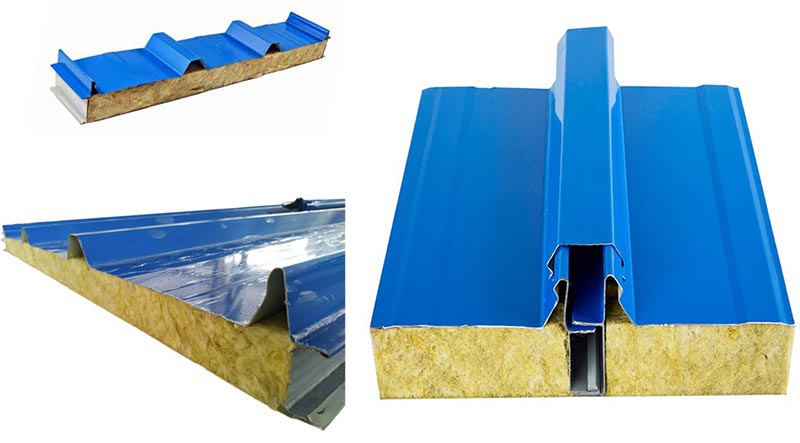

Rock wool sandwich roof panel is a core cladding material specifically designed for modern industrial and commercial building roofing systems. Utilizing a “sandwich” composite structure, it consists of high-strength galvanized steel sheets as the top and bottom layers, filled with high-quality basalt rock wool in the middle. This is achieved through a continuous molding process, forming a high-performance roofing solution integrating structural, thermal insulation, fireproofing, and waterproofing functions.
The core value of rock wool roof panels lies in providing excellent fire safety (Class A non-combustible material) and high energy efficiency while achieving outstanding reliability. The panels possess excellent bending stiffness, capable of withstanding construction, maintenance, and snow loads. The high-density rock wool core material is water-repellent and moisture-proof, ensuring stable long-term thermal insulation performance. The unique concealed connection system not only boasts a clean appearance but also effectively prevents rainwater leakage, achieving a completely airtight roof cover.
With its factory prefabrication and rapid on-site installation capabilities, rock wool sandwich roof panel significantly shorten construction time, making them an ideal choice for large-span buildings such as logistics warehouses, production plants, and cold chain facilities that prioritize safety, energy efficiency, and construction effectiveness.
Product Parameters
| Product Name | Rock wool Roof Sandwich Panel |
| External Metal Plate | Thickness:0.4/0.5/0.6/0.7/0.8mm |
| Coating | PVDF/HDP/SMP/PE |
| Inner Metal Plate | Thickness: 0.4/0.5/0.6mm |
| Panel Thickness | 50/60/75/80/100/150mm |
| Core material | Rock wool |
| Effective Width | 1000mm |
| Length | Customized |
| Thermal Conductivity | ≤0.037-0.043 w/m·k |
| Density | Rock wool: 80-120kg/m3 |
| Color | Usual color: white grey, silver gray, sea-blue, crimson or Customized |
Allowable vertical load and heat transfer coefficient of RUIISTEEL Company ‘Mineral wool sandwich roof panel (allowable deformation f≤L/240).
| Thickness of panel | Heat transfer coefficient | Weight (0.6/0.5mm) | Load capacity |  |
||||
| mm | W/M2 . K | KG/M2 | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50 | 0.75 | 15.75 | L(m) | 3.78 | 3.31 | 2.98 | 2.71 | 2.41 |
| 75 | 0.53 | 18.68 | 4.83 | 4.21 | 3.76 | 3.42 | 3.01 | |
| 100 | 0.41 | 21.62 | 5.77 | 5.02 | 4.47 | 4.04 | 3.55 | |
| 150 | 0.31 | 27.51 | 7.53 | 6.54 | 5.82 | 5.26 | 4.61 | |
Note: Above table is calculated on the basis of rockwool bulk weight of 120kg/m3, 0.6mm outer steel sheet and 0.5mm inner steel sheet .)
Product Advantages
- RUIISTEEL rock wool roof panel adopts concealed nail PIR/PU double-side sealing technology, with top-class Class A fireproof performance to provide reliable safety protection for buildings.

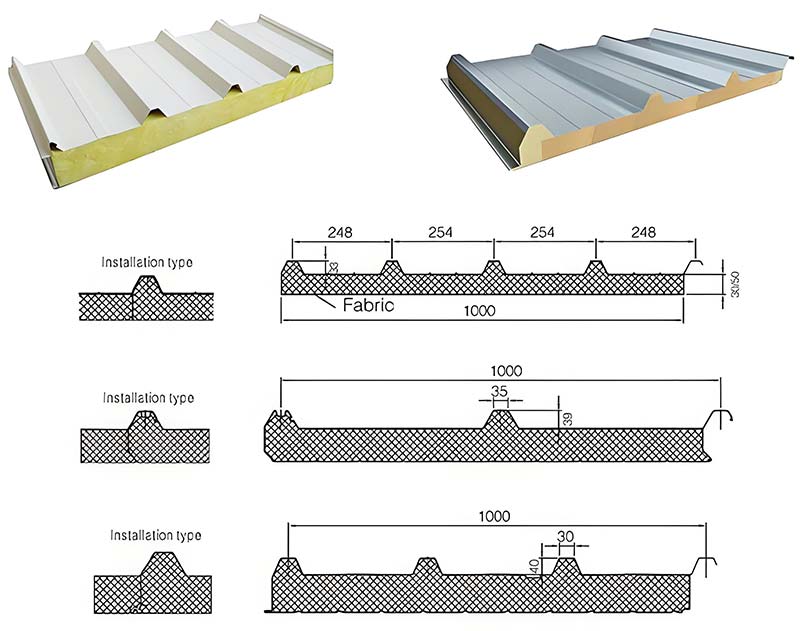

- The panel is designed with 40mm heightened wave crest, which significantly improves roof drainage efficiency and structural bearing capacity, easily meeting the requirements of long-span roofs.
- The minimum applicable roof slope is only 3%, ensuring smooth drainage without water accumulation. Equipped with concealed nail fixing system, the nail spacing can be flexibly adjusted from 250–1000mm, with a clean, beautiful and seamless surface.
- It features strong resistance to negative wind pressure and high stability, especially suitable for typhoon and strong wind areas. It is a high-performance roof system solution integrating wind resistance, waterproofing, fireproofing and thermal insulation.
We earn the long-term trust of global clients through unparalleled efficiency and relentless pursuit of quality excellence.
Production Workshop Display
The company has a modern production base of over 8,000 square meters, equipped with a steel structure welding workshop, two Italian‑imported sandwich panel production lines, three complete house production lines and an intelligent assembly system. The annual steel structure capacity reaches 150,000 tons, with a daily output of 3,000 square meters of high‑end sandwich panels and 200 sets of modular houses.
Product Packaging & Shipping

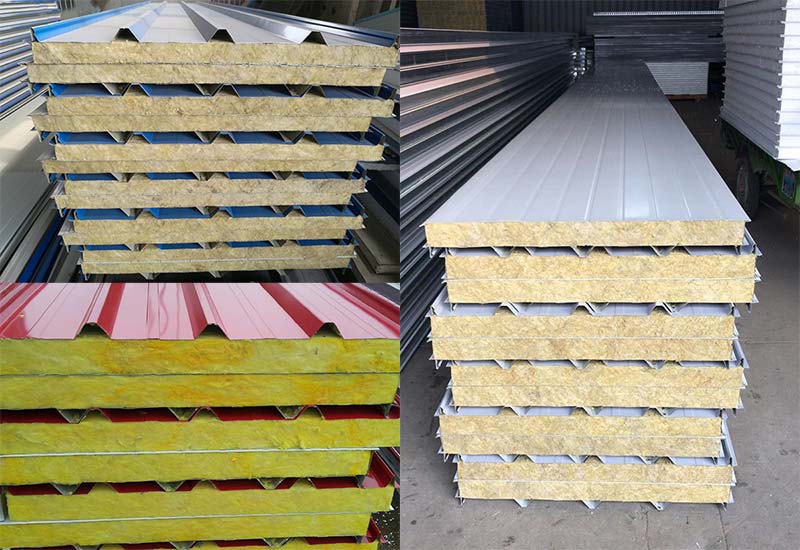

Our packing and shipping services offer customized, robust transportation solutions for every product category, ensuring your goods arrive safely worldwide. Steel structural components are packed with sturdy steel frames, forming stable transport units that effectively withstand the bumps and pressure of long-distance sea and land transport. Sandwich panels and container houses are fully wrapped with high-quality protective films, providing moisture, dust, and scratch protection while fully preserving the coating and appearance of the panels. We have deep expertise in export logistics; from packing methods to container loading, every step is professionally optimized to provide you with a worry-free and reliable delivery experience.
Why Choose Us?
- Compliance guaranteed: Complete international certifications, compatible with national standards, reducing application and acceptance risks.
- Cost controllable: Chinese supply and prefabricated construction result in overall cost savings of 15%-25%.
- Schedule guaranteed: BIM collaboration and factory prefabrication enable rapid production and a competitive market advantage.
- Reliable quality: Export-grade processes and rigorous testing ensure both structural safety and durability meet standards.
Frequently Ask Questions
Design drawings → Quotation → Confirmed drawings → Purchase order → Purchase order confirmation → 30% deposit payment → Production → Quality inspection → Balance payment → Shipment.
This depends on the order quantity and the complexity of the customization. Generally, for regular order quantities, delivery time is within 30 days after receiving the deposit.
Yes, samples can be provided, but customers need to pay for the sample fee and international express shipping.
You are welcome to send inspectors at any time. Inspections can be arranged not only during container loading but also at any time during the production process.
We are a manufacturing plant with over 120 employees and a factory area of over 10,000 square meters, where you can enjoy the best prices and competitive costs.
Yes, we have over 10 design engineers. They can create complete solution drawings based on your needs. Software they use includes: AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) V12.0, etc.
RuiSteel is a company that highly values quality. We hold ISO9001, BV, SGS, and FM certifications.
Yes, we will send you relevant information and photos at different stages of your order's production so you can get the latest updates in a timely manner.
