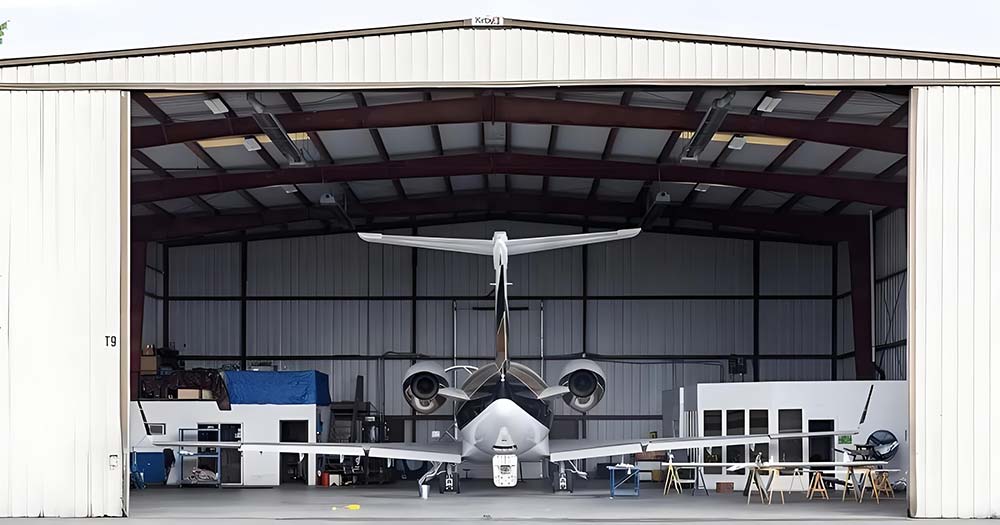

Aircraft Storage and Maintenance Prefab Hangar
| Place of Origin: | Zhengzhou,China |
|---|---|
| Brand Name: | RUIISTEEL |
| Materials: | Q235/Q355 Steel |
| Beam/Column: | H-Shaped Steel |
| Purlins: | C/Z Section Steel |
| Wall/Roof System: | Insulation Panel (EPS/PU/Rock Wool), Steel Plate |
| Accessory: | Door, Window, Crane, Drainage Pipe, |
| Certification: | CE, ISO, GB, AISC, SGS, BV |
| Service Life: | Over 50 Years |
| Delivery Time: | 30 Days After Receiving the Deposit |
| Payment: | T/T, L/C |
Product Details
Designed specifically to meet the modern aviation industry’s dual demands for efficient storage and professional maintenance, RUIISTEEL’s prefab hangar perfectly blend the flexibility of large-span space with heavy-duty maintenance capabilities. Featuring a column-free clear span design (over 100 meters), it ensures unobstructed taxiing, parking, and maintenance access for aircraft, accommodating both single wide-body business jets and multiple general aviation fleets.
The main structure of the prefab hangar utilizes high-strength prefabricated steel components, precision-machined in the factory and then transported to the site for bolt assembly. This reduces construction time by nearly half compared to traditional construction, allowing for rapid deployment of your operational facilities. The standard building envelope system features polyurethane-sealed rock wool sandwich panels, providing superior thermal insulation and fire resistance. Combined with a hot-dip galvanized steel structure, this ensures the facility’s long-term durability in harsh environments such as coastal high-salt spray or extreme cold and heat.
The interior space can be deeply customized to your maintenance needs, seamlessly integrating bridge cranes, underground maintenance pits, second-floor office areas, and aircraft parts storage, truly realizing a “hangar as workstation.” Choosing our prefabricated solution means obtaining a safe, compliant, and cost-effective aviation asset protection base.
Product Parameters
| Name | Customized Design Steel Structure Hangar | |
| Dimensions | Structure System | Steel Portal Frame + Space Truss Structure |
| Bracing | Round steel is supplied with knee bracing and other supporting parts that need portal framing, which will improve the stability and durability of the whole structural building. | |
| main steel frame | H columns and beams with gray paint | |
| Design data | Wind load-0.75KN/m2; Roof Dead load-0.2KN /m2; Roof Live load-0.3kN/m2. | |
| Size of steel hangar | 60m*40m*9m (Length* Width* Eave Height) | |
| Secondary Framing | C Purlin, Tie Bar, Roof and Wall Support are formed as secondary framing | |
| Roof /Wall Material | V-950 Steel Sandwich Panel, 0.5mm/50mm Glasswool/0.5mm, White | |
| Advantages | 1. Lower cost with better quality. | |
| 2. High safety performance. | ||
| 3. Easy to assemble and dismantle. | ||
| 4. Manufacture under complete quality control system – ISO9001. | ||
| 5. Installation with instruction of experienced engineers | ||
| 6. Non-pollution. | ||
| Quotation and Drawings | According to customers’ requirements with for free | |
Steel Structure Kits
Advantages of the Prefab Hangar
Column-Free Large-Span Design
Breaking through traditional structural limitations, this hangar achieves a clear span of over 100 meters without any internal supporting columns. It provides unobstructed parking, maintenance, and dispatch space for wide-body passenger aircraft, business jets, and helicopter fleets, maximizing operational flexibility.
Rapid Delivery and Installation
Utilizing a fully prefabricated production model, major steel components are precision-machined, drilled, and trial-assembled in the factory. On-site connections require only bolt connections, reducing the construction cycle by 40%-60% compared to traditional construction, significantly minimizing disruption to airport operations.
Superior Durability and Protection
- Main Structure: Constructed with hot-dip galvanized steel, providing over 30 years of superior corrosion protection;
- Enclosure System: Utilizes polyurethane-sealed rock wool sandwich panels, combining Class A fire resistance, excellent thermal insulation, and wind resistance;
- Wind Resistance Rating: Designed strictly according to international standards, capable of withstanding typhoons of force 12 or higher.
Life Cycle Cost Advantage
Prefabrication reduces on-site labor and material waste. Combined with the low-maintenance characteristics of metal structures, it saves 20%-30% on overall costs compared to concrete buildings.
Intelligent Expansion Functions
✅ Integrated Bridge Crane System (5-50 tons).
✅ Embedded Maintenance Trench and Hydraulic Lifting Platform.
✅ LED Intelligent Lighting and Fire Sprinkler System.
✅ Mezzanine Office Area and Aviation Material Storage Room.
✅ Integrated Photovoltaic Roof.

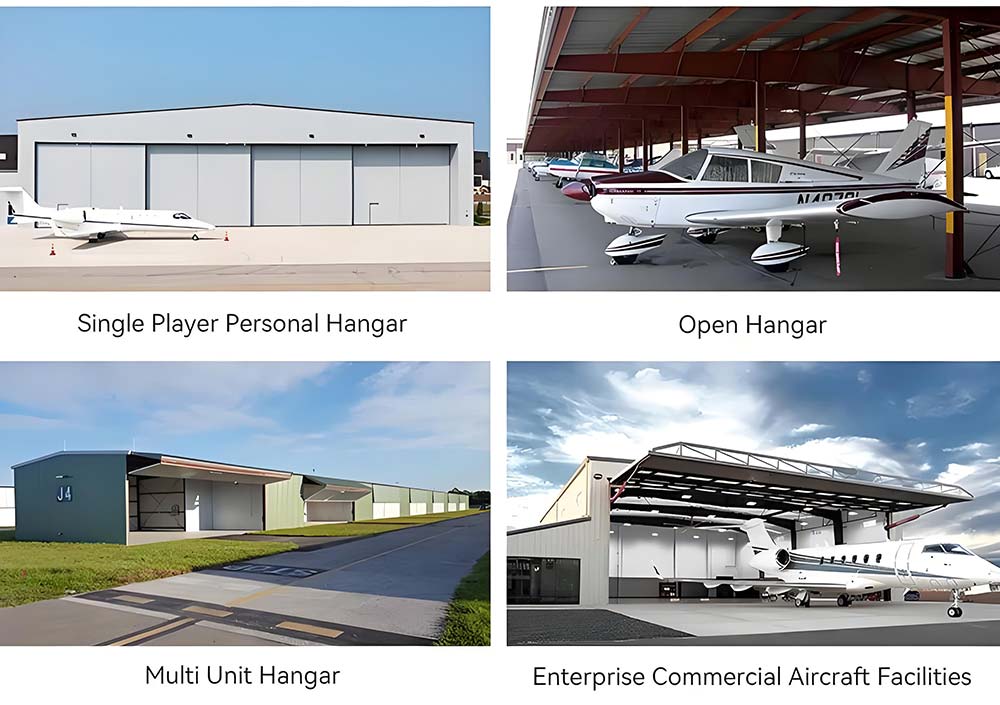

Application Scenarios
General Aviation: Parking and routine maintenance for private jets and small propeller aircraft.
Commercial/Freight Logistics: Airport major maintenance (MRO) centers, indoor loading and unloading warehouses for logistics transfer aircraft.
Helicopter Bases: Rapid response centers for medical rescue, forest fire fighting, or police helicopters.
Military Hangars: Shelter and maintenance space for fighter jets or drones.
One-Stop Solution
RUIISTEEL provides global clients with end-to-end services from hangar design and material manufacturing to cross-border logistics.
Customized Solutions: Providing 1:1 3D modeling designs based on the wingspan and tail height of the aircraft type (e.g., Cessna, Gulfstream, or Boeing series).
Full-Pack Export Packages: Includes main steel structure, insulated wall panels, hangar doors, lighting system, drainage system, and specialized pressure-resistant flooring design.
Global Delivery Guarantee: With experience delivering complex steel structure projects in the United States, Europe, Africa and other regions, we ensure that every hangar can cross oceans and be precisely assembled locally.
We earn the long-term trust of global clients through unparalleled efficiency and relentless pursuit of quality excellence.
Production Workshop Display
The company has a modern production base of over 8,000 square meters, equipped with a steel structure welding workshop, two Italian‑imported sandwich panel production lines, three complete house production lines and an intelligent assembly system. The annual steel structure capacity reaches 150,000 tons, with a daily output of 3,000 square meters of high‑end sandwich panels and 200 sets of modular houses.
Product Packaging & Shipping
Our packing and shipping services offer customized, robust transportation solutions for every product category, ensuring your goods arrive safely worldwide. Steel structural components are packed with sturdy steel frames, forming stable transport units that effectively withstand the bumps and pressure of long-distance sea and land transport. Sandwich panels and container houses are fully wrapped with high-quality protective films, providing moisture, dust, and scratch protection while fully preserving the coating and appearance of the panels. We have deep expertise in export logistics; from packing methods to container loading, every step is professionally optimized to provide you with a worry-free and reliable delivery experience.
Why Choose Us?
- Compliance guaranteed: Complete international certifications, compatible with national standards, reducing application and acceptance risks.
- Cost controllable: Chinese supply and prefabricated construction result in overall cost savings of 15%-25%.
- Schedule guaranteed: BIM collaboration and factory prefabrication enable rapid production and a competitive market advantage.
- Reliable quality: Export-grade processes and rigorous testing ensure both structural safety and durability meet standards.
Frequently Ask Questions
Design drawings → Quotation → Confirmed drawings → Purchase order → Purchase order confirmation → 30% deposit payment → Production → Quality inspection → Balance payment → Shipment.
This depends on the order quantity and the complexity of the customization. Generally, for regular order quantities, delivery time is within 30 days after receiving the deposit.
Yes, samples can be provided, but customers need to pay for the sample fee and international express shipping.
You are welcome to send inspectors at any time. Inspections can be arranged not only during container loading but also at any time during the production process.
We are a manufacturing plant with over 120 employees and a factory area of over 10,000 square meters, where you can enjoy the best prices and competitive costs.
Yes, we have over 10 design engineers. They can create complete solution drawings based on your needs. Software they use includes: AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) V12.0, etc.
RuiSteel is a company that highly values quality. We hold ISO9001, BV, SGS, and FM certifications.
Yes, we will send you relevant information and photos at different stages of your order's production so you can get the latest updates in a timely manner.
