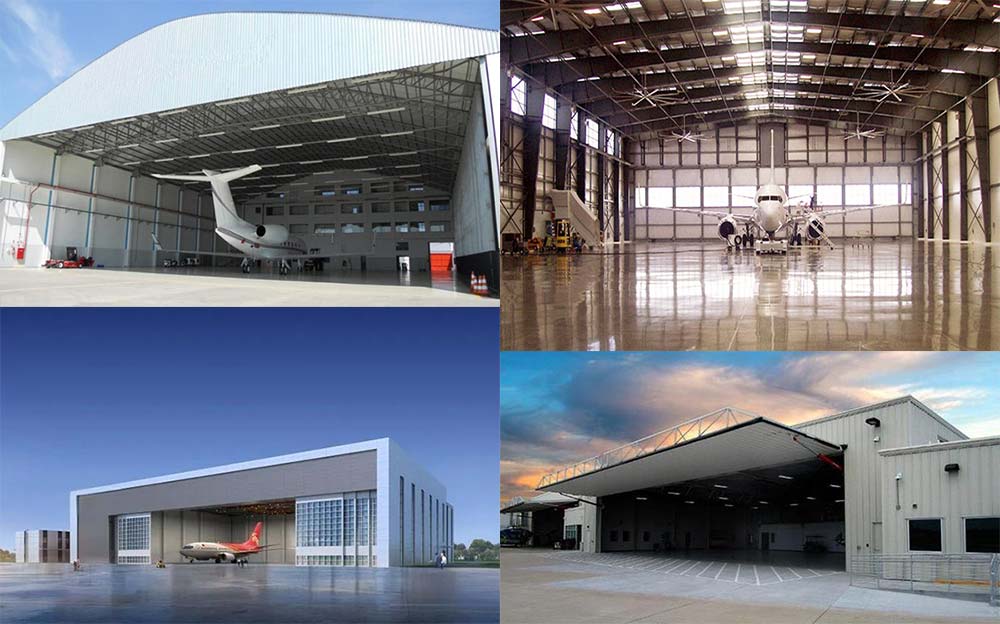

Prefabricated Metal Hangar Aircraft Warehouse
| Place of Origin: | Zhengzhou,China |
|---|---|
| Brand Name: | RUIISTEEL |
| Materials: | Q235/Q355 Steel |
| Beam/Column: | H-Shaped Steel |
| Purlins: | C/Z Section Steel |
| Wall/Roof System: | Insulation Panel (EPS/PU/Rock Wool), Steel Plate |
| Accessory: | Crane, Drainage Pipe, Door, Window |
| Certification: | CE, ISO, GB, AISC, SGS, BV |
| Service Life: | Over 50 Years |
| Delivery Time: | 30 Days After Receiving the Deposit |
| Payment: | T/T, L/C |
Product Details
Prefabricated metal hangar is modular building solutions specifically designed for aircraft. They combine high-strength steel structural engineering with advanced enclosure systems to provide a safe, temperature-controlled environment with ample open space for the storage and maintenance of private jets, commercial fleets, or helicopters.
Structural System
The core of the prefabricated hangar lies in its superior mechanical properties, enabling it to support vast open spaces.
Main Steel Frame: Utilizing Q355B high-strength H-beams as main beams and columns. The portal frame structure design ensures the hangar can achieve spans of 30-90 meters without intermediate support columns, facilitating easy aircraft entry and exit.
Support System: Includes galvanized C/Z-shaped steel purlins, tie rods, horizontal bracing, and inter-column bracing. These components form a robust longitudinal stability system capable of withstanding strong typhoons and seismic loads.

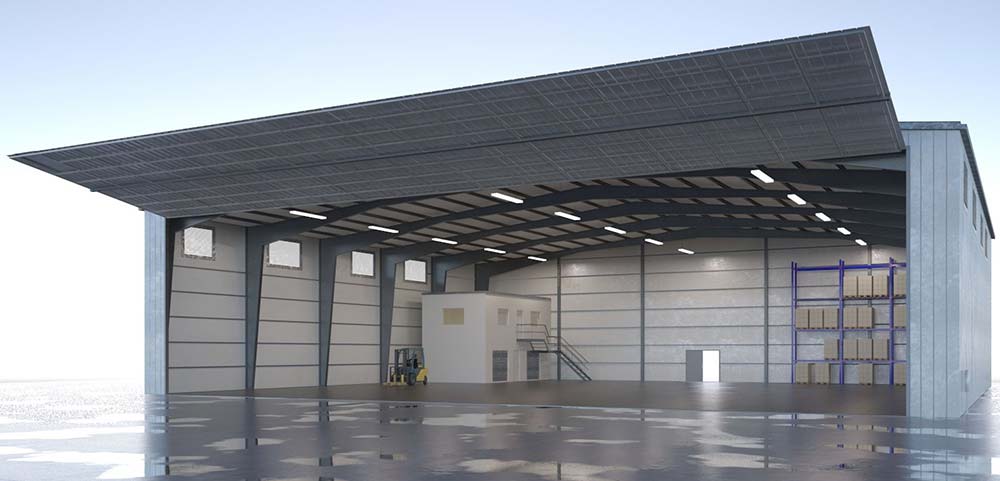

Customized Hangar Doors: Customized according to aircraft model, with options for electrically stacked doors, sliding doors, or hydraulically tilting doors. The width and height of the doorway are precisely calculated to ensure safe passage for aircraft with large wingspans.
Product Parameters
| Name | Customized Design Steel Structure Hangar | |
| Dimensions | Structure System | Steel Portal Frame + Space Truss Structure |
| Bracing | Round steel is supplied with knee bracing and other supporting parts that need portal framing, which will improve the stability and durability of the whole structural building. | |
| main steel frame | H columns and beams with gray paint | |
| Design data | Wind load-0.75KN/m2; Roof Dead load-0.2KN /m2; Roof Live load-0.3kN/m2. | |
| Size of steel hangar | 60m*40m*9m (Length* Width* Eave Height) | |
| Secondary Framing | C Purlin, Tie Bar, Roof and Wall Support are formed as secondary framing | |
| Roof /Wall Material | V-950 Steel Sandwich Panel, 0.5mm/50mm Glasswool/0.5mm, White | |
| Advantages | 1. Lower cost with better quality. | |
| 2. High safety performance. | ||
| 3. Easy to assemble and dismantle. | ||
| 4. Manufacture under complete quality control system – ISO9001. | ||
| 5. Installation with instruction of experienced engineers | ||
| 6. Non-pollution. | ||
| Quotation and Drawings | According to customers’ requirements with for free | |
Steel Structure Kits
Features of Prefabricated Metal Hangar
Superior Clearance Design: The interior is completely column-free, greatly improving operational efficiency and space utilization within the hangar, facilitating aircraft maintenance, refueling, and towing.
Top-Tier Protection: Steel components are treated with hot-dip galvanizing or high-performance fluorocarbon coating, providing exceptional corrosion resistance. Combined with a PIR sandwich panel enclosure system, it achieves excellent fire resistance (B1 rating) and temperature control, protecting precision aviation instruments from temperature fluctuations.
Rapid Delivery and Expansion: 100% industrially prefabricated, with all on-site bolted connections. Compared to traditional concrete construction, the construction cycle is reduced by more than 60%. Future increases in storage capacity can be easily achieved through modular horizontal expansion.
High Weather Resistance: Specially designed for extreme environments such as high altitudes and coastal areas with high salt spray, ensuring the hangar remains robust for over 50 years.
Application Scenarios
General Aviation: Parking and routine maintenance for private jets and small propeller aircraft.
Commercial/Freight Logistics: Airport major maintenance (MRO) centers, indoor loading and unloading warehouses for logistics transfer aircraft.
Helicopter Bases: Rapid response centers for medical rescue, forest fire fighting, or police helicopters.
Military Hangars: Shelter and maintenance space for fighter jets or drones.
One-Stop Solution
RUIISTEEL provides global clients with end-to-end services from hangar design and material manufacturing to cross-border logistics.
- Customized Solutions: Providing 1:1 3D modeling designs based on the wingspan and tail height of the aircraft type (e.g., Cessna, Gulfstream, or Boeing series).
- Full-Pack Export Packages: Includes main steel structure, insulated wall panels, hangar doors, lighting system, drainage system, and specialized pressure-resistant flooring design.
- Global Delivery Guarantee: With experience delivering complex steel structure projects in the United States, Europe, Africa and other regions, we ensure that every hangar can cross oceans and be precisely assembled locally.
We earn the long-term trust of global clients through unparalleled efficiency and relentless pursuit of quality excellence.
Production Workshop Display
The company has a modern production base of over 8,000 square meters, equipped with a steel structure welding workshop, two Italian‑imported sandwich panel production lines, three complete house production lines and an intelligent assembly system. The annual steel structure capacity reaches 150,000 tons, with a daily output of 3,000 square meters of high‑end sandwich panels and 200 sets of modular houses.
Product Packaging & Shipping
Our packing and shipping services offer customized, robust transportation solutions for every product category, ensuring your goods arrive safely worldwide. Steel structural components are packed with sturdy steel frames, forming stable transport units that effectively withstand the bumps and pressure of long-distance sea and land transport. Sandwich panels and container houses are fully wrapped with high-quality protective films, providing moisture, dust, and scratch protection while fully preserving the coating and appearance of the panels. We have deep expertise in export logistics; from packing methods to container loading, every step is professionally optimized to provide you with a worry-free and reliable delivery experience.
Why Choose Us?
- Compliance guaranteed: Complete international certifications, compatible with national standards, reducing application and acceptance risks.
- Cost controllable: Chinese supply and prefabricated construction result in overall cost savings of 15%-25%.
- Schedule guaranteed: BIM collaboration and factory prefabrication enable rapid production and a competitive market advantage.
- Reliable quality: Export-grade processes and rigorous testing ensure both structural safety and durability meet standards.
Frequently Ask Questions
Design drawings → Quotation → Confirmed drawings → Purchase order → Purchase order confirmation → 30% deposit payment → Production → Quality inspection → Balance payment → Shipment.
This depends on the order quantity and the complexity of the customization. Generally, for regular order quantities, delivery time is within 30 days after receiving the deposit.
Yes, samples can be provided, but customers need to pay for the sample fee and international express shipping.
You are welcome to send inspectors at any time. Inspections can be arranged not only during container loading but also at any time during the production process.
We are a manufacturing plant with over 120 employees and a factory area of over 10,000 square meters, where you can enjoy the best prices and competitive costs.
Yes, we have over 10 design engineers. They can create complete solution drawings based on your needs. Software they use includes: AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) V12.0, etc.
RuiSteel is a company that highly values quality. We hold ISO9001, BV, SGS, and FM certifications.
Yes, we will send you relevant information and photos at different stages of your order's production so you can get the latest updates in a timely manner.
