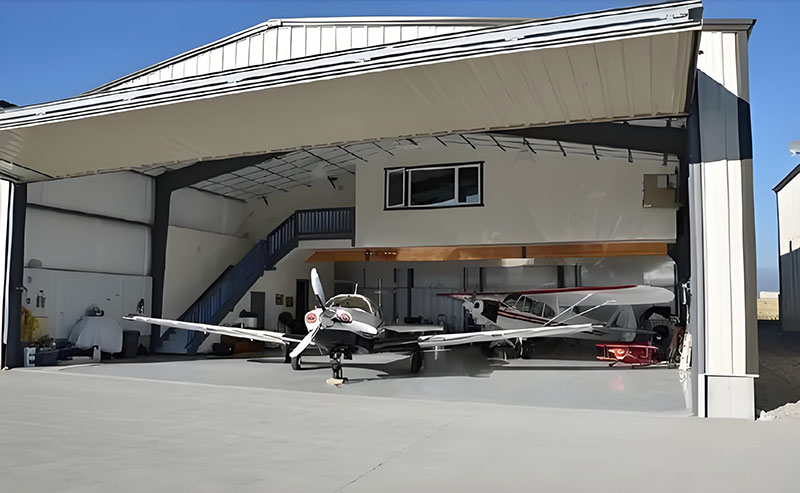

Clear Span Prefabricated Steel Hangar Building
| Place of Origin: | Zhengzhou,China |
|---|---|
| Brand Name: | RUIISTEEL |
| Materials: | Q235/Q355 Steel |
| Beam/Column: | H-Shaped Steel |
| Purlins: | C/Z Section Steel |
| Wall/Roof System: | Insulation Panel (EPS/PU/Rock Wool), Steel Plate |
| Accessory: | Door, Window, Drainage Pipe |
| Certification: | CE, ISO, GB, AISC, SGS, BV |
| Service Life: | Over 50 Years |
| Delivery Time: | 30 Days After Receiving the Deposit |
| Payment: | T/T, L/C |
Product Details
Designed specifically for aviation operations and maintenance scenarios, this prefabricated steel hangar building boasts a clear span and a core advantage of being column-free, completely freeing up a large, unobstructed space. It perfectly accommodates the flexible parking, scheduling, and maintenance of various fixed-wing aircraft, helicopters, and large drones.
The main structure of the prefabricated steel hangar building utilizes high-strength prefabricated steel components, which undergo precision machining and pre-assembly testing in the factory. Upon arrival on site, they can be quickly erected with only bolt connections, significantly reducing construction time and minimizing disruption to airport operations. The steel components are standardly hot-dip galvanized for corrosion protection, and the roof and walls are finished with polyurethane-edged rock wool sandwich panels, ensuring excellent corrosion resistance and thermal insulation and fire resistance, easily handling harsh environments such as high salt spray and high humidity in coastal areas.
The steel hangar building can achieve a clear span of over 80 meters. The internal space can flexibly integrate functional modules such as driving lanes, maintenance pits, and second-floor office areas. Designed in strict accordance with international aviation building standards, it provides global general aviation customers with safer, more efficient, and more cost-effective aviation infrastructure solutions throughout their entire lifecycle.
Product Parameters
| Name | Customized Design Steel Structure Aircraft Hangar | |
| Dimensions | Structure System | Metal Frame + Space Truss Structure |
| Bracing | Round steel is supplied with knee bracing and other supporting parts that need portal framing, which will improve the stability and durability of the whole structural building. | |
| main steel frame | H columns and beams with gray paint | |
| Design data | Wind load-0.75KN/m2; Roof Dead load-0.2KN /m2; Roof Live load-0.3kN/m2. | |
| Size of steel hangar | 60m*40m*9m (Length* Width* Eave Height) | |
| Secondary Framing | C Purlin, Tie Bar, Roof and Wall Support are formed as secondary framing | |
| Roof /Wall Material | V-950 Steel Sandwich Panel, 0.5mm/50mm Glasswool/0.5mm, White | |
| Advantages | 1. Lower cost with better quality. | |
| 2. High safety performance. | ||
| 3. Easy to assemble and dismantle. | ||
| 4. Manufacture under complete quality control system – ISO9001. | ||
| 5. Installation with instruction of experienced engineers | ||
| 6. Non-pollution. | ||
| Quotation and Drawings | According to customers’ requirements with for free | |
Steel Structure Kits
Application Scenarios
General Aviation: Parking and routine maintenance for private jets and small propeller aircraft.
Commercial/Freight Logistics: Airport major maintenance (MRO) centers, indoor loading and unloading warehouses for logistics transfer aircraft.
Helicopter Bases: Rapid response centers for medical rescue, forest fire fighting, or police helicopters.
Military Hangars: Shelter and maintenance space for fighter jets or drones.
One-Stop Solution
RUIISTEEL provides global clients with end-to-end services from hangar design and material manufacturing to cross-border logistics.
- Customized Solutions: Providing 1:1 3D modeling designs based on the wingspan and tail height of the aircraft type (e.g., Cessna, Gulfstream, or Boeing series).
- Full-Pack Export Packages: Includes main steel structure, insulated wall panels, hangar doors, lighting system, drainage system, and specialized pressure-resistant flooring design.
- Global Delivery Guarantee: With experience delivering complex steel structure projects in the United States, Europe, Africa and other regions, we ensure that every hangar can cross oceans and be precisely assembled locally.
We earn the long-term trust of global clients through unparalleled efficiency and relentless pursuit of quality excellence.
Production Workshop Display
The company has a modern production base of over 8,000 square meters, equipped with a steel structure welding workshop, two Italian‑imported sandwich panel production lines, three complete house production lines and an intelligent assembly system. The annual steel structure capacity reaches 150,000 tons, with a daily output of 3,000 square meters of high‑end sandwich panels and 200 sets of modular houses.
Product Packaging & Shipping
Our packing and shipping services offer customized, robust transportation solutions for every product category, ensuring your goods arrive safely worldwide. Steel structural components are packed with sturdy steel frames, forming stable transport units that effectively withstand the bumps and pressure of long-distance sea and land transport. Sandwich panels and container houses are fully wrapped with high-quality protective films, providing moisture, dust, and scratch protection while fully preserving the coating and appearance of the panels. We have deep expertise in export logistics; from packing methods to container loading, every step is professionally optimized to provide you with a worry-free and reliable delivery experience.
Why Choose Us?
- Compliance guaranteed: Complete international certifications, compatible with national standards, reducing application and acceptance risks.
- Cost controllable: Chinese supply and prefabricated construction result in overall cost savings of 15%-25%.
- Schedule guaranteed: BIM collaboration and factory prefabrication enable rapid production and a competitive market advantage.
- Reliable quality: Export-grade processes and rigorous testing ensure both structural safety and durability meet standards.
Frequently Ask Questions
Design drawings → Quotation → Confirmed drawings → Purchase order → Purchase order confirmation → 30% deposit payment → Production → Quality inspection → Balance payment → Shipment.
This depends on the order quantity and the complexity of the customization. Generally, for regular order quantities, delivery time is within 30 days after receiving the deposit.
Yes, samples can be provided, but customers need to pay for the sample fee and international express shipping.
You are welcome to send inspectors at any time. Inspections can be arranged not only during container loading but also at any time during the production process.
We are a manufacturing plant with over 120 employees and a factory area of over 10,000 square meters, where you can enjoy the best prices and competitive costs.
Yes, we have over 10 design engineers. They can create complete solution drawings based on your needs. Software they use includes: AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) V12.0, etc.
RuiSteel is a company that highly values quality. We hold ISO9001, BV, SGS, and FM certifications.
Yes, we will send you relevant information and photos at different stages of your order's production so you can get the latest updates in a timely manner.
