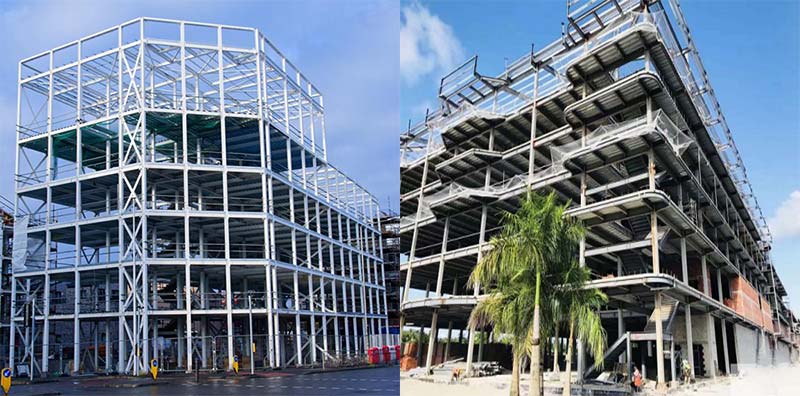

Quick Assembly Prefabricated Steel Structure Hotel
| Place of Origin: | Zhengzhou, China |
|---|---|
| Brand Name: | RUIISTEEL |
| Materials: | Q235/Q355 Steel |
| Beam/Column: | H-Shaped Steel |
| Purlins: | C/Z Section Steel |
| Wall/Roof System: | Insulation Sandwich Panel, Brick-Concrete |
| Accessory: | Drainage Pipe, Door, Window, Stairs, Floor Decking |
| Certification: | CE, ISO, GB, AISC, SGS, BV |
| Service Life: | Over 50 Years |
| Delivery Time: | 30 Days After Receiving the Deposit |
| Payment: | T/T, L/C |
Product Details
Today, as the demand for tourism, business and vacation accommodation continues to grow, traditional hotel construction has a long construction cycle, high costs and great pressure on environmental protection. The prefabricated steel structure hotel provides a new construction model, prefabricated in the factory, assembled on site, and ready to use. It combines industrial efficiency and architectural aesthetics, and is suitable for various scenarios such as resorts, scenic hotels, motels, camp apartments, economical chain hotels, and temporary event accommodation.
Steel structure hotel features
Hotel-level comfort and beauty
Prefabricated steel structure hotels no longer have the image of “temporary rooms”. We offer:
- A variety of exterior facade solutions: metal carved panels, imitation wood grain panels, real stone paint, glass curtain walls, fiber cement boards, etc., to integrate with the natural or urban environment.
- High-quality interior: optional gypsum board partitions, integrated bathroom, sound insulation and insulation, LED lighting, and reserved interfaces for air conditioning/floor heating.
- Sound insulation and thermal insulation: rock wool or polyurethane sandwich panel + double-layer gypsum board + air insulation, sound insulation of more than 45dB, thermal conductivity as low as 0.35 W/(m²·K).
Fully modular customization
You can freely combine according to your project needs:
- Building size: Single rooms start at 3m×6m, which can be combined into standard rooms, suites, and family rooms, with floors 1–4 (can be higher, special design required).
- Room types: standard double room, twin room, suite, accessible room, dormitory-style multi-person room.
- Public areas: lobby, restaurant, conference room, laundry room, and staff dormitories can all use the same structural system.
- Additional features: balconies, terraces, awnings, corridors, elevator shafts, photovoltaic roofs, and smart door lock systems.
Industrial grade steel structure
Steel grade: Q355B / G350 (or equivalent according to local standards);
Surface treatment: hot-dip galvanizing (≥275g/m²) + optional powder coating, corrosion resistance suitable for island, high humidity or industrial area environments;
Connection method: full bolt connection, no welding required, can be rebuilt in another location after disassembly;
Foundation adaptation: spiral piles, strip foundations, and precast concrete piers are all available, adapting to different geological conditions.
Standard hotel units include:
- Main steel frame (columns, roof beams, floor beams);
- Purlins, braces and shear wall systems;
- Roof and wall panels (including insulation);
- Prefabricated steel frames for door and window openings;
- All connecting bolts and mounting hardware;
- Reserved holes and bridges for water supply, drainage and electrical pipelines;
- Detailed installation manual (multilingual, with 3D step-by-step diagrams);
- Optional: full set of interior decoration materials, sanitary ware, furniture, HVAC equipment.
Technical parameter (can be customized)
| Parameter | Standard Range | Remarks |
|---|---|---|
| Single guest room area | 18 – 45 m² | Can be larger or connected as suites |
| Floor-to-floor height | 2.8 – 3.6 m (clear height adjustable) | Higher ceiling possible for public areas |
| Seismic fortification intensity | Intensity 8 (0.2g) | Can be specially designed for intensity 9 |
| Wind resistance | Up to 140 km/h (typhoon level 12) | Adjusted according to local wind pressure |
| Roof live load | 0.5 – 1.5 kN/m² | Can be designed for accessible roof or green roof |
| Floor live load | 2.0 – 3.0 kN/m² | Meets hotel operational requirements |
| Design life | 50 years (main structure) | Galvanized coating ensures 25+ years without rust |
| Thermal performance | U-value ≤ 0.45 W/(m²·K) | Suitable for both cold and tropical regions |
Application scenarios
Scenic spots and resorts: Quickly build independent guest rooms in mountains, lakes, and forests with minimal damage to the natural environment.
Motels and highway stations: deployed in batches along highways or national highways, modular expansion is convenient.
Economic chain hotels: standardized replication, reduced construction costs, and unified brand image.
Upgraded versions of campsites and container hotels: more spacious, more insulated and more beautiful than containers.
Post-disaster reconstruction or temporary accommodation: detachable, movable, used for worker camps, event accommodation or medical isolation points.
Why choose prefabricated steel structure hotel?
- The construction period is shortened by more than 50%: the main structure is prefabricated in the factory, and only bolts are required on site. The fastest time from foundation to delivery is 30–60 days.
- Controllable costs, no hidden costs: Factory mass production, transparent material and labor costs, reducing on-site changes and waste.
- The structure is safe and adaptable to various climates: high-strength galvanized steel, earthquake-resistant (level 8 fortification), wind-resistant (level 12), snow load-resistant, and has a service life of more than 50 years.
- Flexible and scalable: The modular design can easily increase the number of floors, rooms, or change the layout to adapt to future business needs.
- Green and environmentally friendly: Steel is recyclable, construction waste is reduced by 80%, and green building technologies such as solar energy, insulation systems, and rainwater collection can be integrated.
We earn the long-term trust of global clients through unparalleled efficiency and relentless pursuit of quality excellence.
Production Workshop Display
The company has a modern production base of over 8,000 square meters, equipped with a steel structure welding workshop, two Italian‑imported sandwich panel production lines, three complete house production lines and an intelligent assembly system. The annual steel structure capacity reaches 150,000 tons, with a daily output of 3,000 square meters of high‑end sandwich panels and 200 sets of modular houses.
Product Packaging & Shipping
Our packing and shipping services offer customized, robust transportation solutions for every product category, ensuring your goods arrive safely worldwide. Steel structural components are packed with sturdy steel frames, forming stable transport units that effectively withstand the bumps and pressure of long-distance sea and land transport. Sandwich panels and container houses are fully wrapped with high-quality protective films, providing moisture, dust, and scratch protection while fully preserving the coating and appearance of the panels. We have deep expertise in export logistics; from packing methods to container loading, every step is professionally optimized to provide you with a worry-free and reliable delivery experience.
Why Choose Us?
- Compliance guaranteed: Complete international certifications, compatible with national standards, reducing application and acceptance risks.
- Cost controllable: Chinese supply and prefabricated construction result in overall cost savings of 15%-25%.
- Schedule guaranteed: BIM collaboration and factory prefabrication enable rapid production and a competitive market advantage.
- Reliable quality: Export-grade processes and rigorous testing ensure both structural safety and durability meet standards.
Frequently Ask Questions
Design drawings → Quotation → Confirmed drawings → Purchase order → Purchase order confirmation → 30% deposit payment → Production → Quality inspection → Balance payment → Shipment.
This depends on the order quantity and the complexity of the customization. Generally, for regular order quantities, delivery time is within 30 days after receiving the deposit.
Yes, samples can be provided, but customers need to pay for the sample fee and international express shipping.
You are welcome to send inspectors at any time. Inspections can be arranged not only during container loading but also at any time during the production process.
We are a manufacturing plant with over 120 employees and a factory area of over 10,000 square meters, where you can enjoy the best prices and competitive costs.

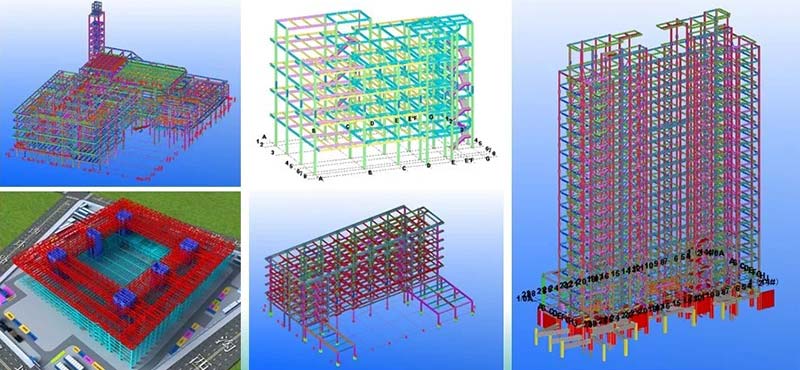

Yes, we have over 10 design engineers. They can create complete solution drawings based on your needs. Software they use includes: AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) V12.0, etc.
RuiSteel is a company that highly values quality. We hold ISO9001, BV, SGS, and FM certifications.
Yes, we will send you relevant information and photos at different stages of your order's production so you can get the latest updates in a timely manner.
